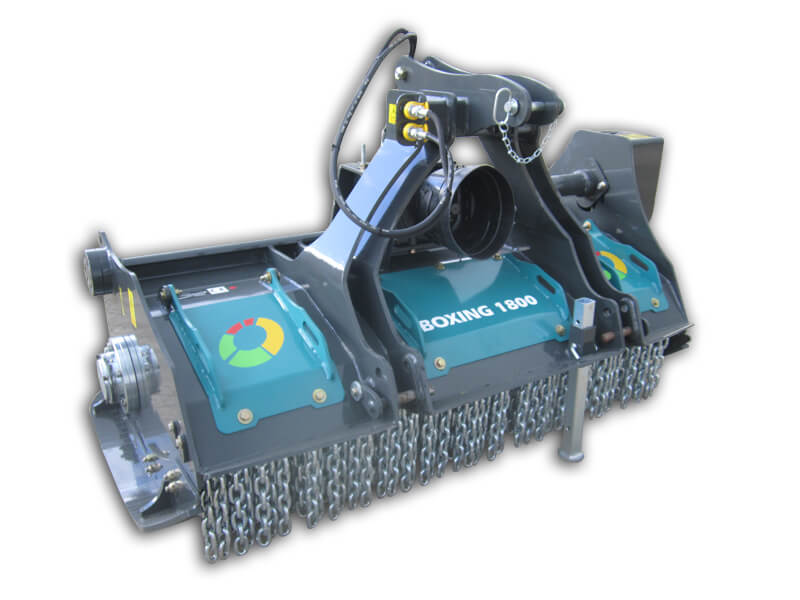

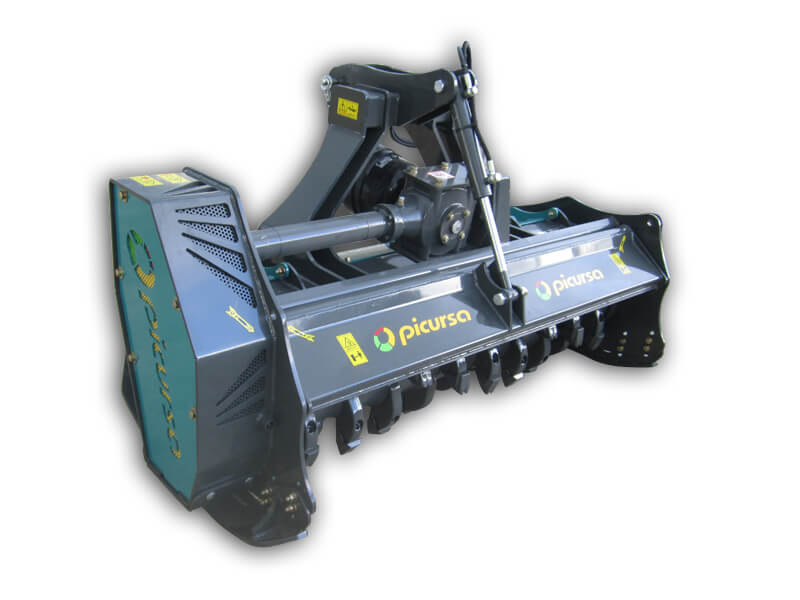

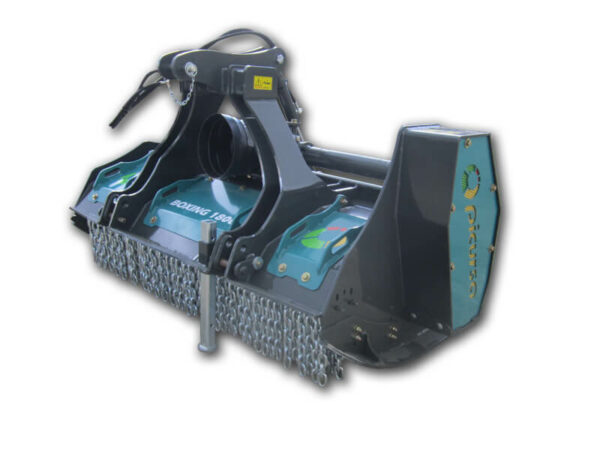

Boxing fixed hammer forest crusher

The Boxing fixed hammer forest crusher is specially designed for the crushing of branch cords, low brush and farm maintenance.

Robustness

Innovation

Flexibility

Durability

SKU: 302 Category:

Boxing fixed hammer forest crusher description:

The Boxing fixed hammer forest crusher is specially designed for the crushing of branch cords, low brush and farm maintenance. This mulcher is specially designed for tractors between 100-200 HP It is equipped with special alloy hammers with hard metal tips that make them more resistant and harder-wearing. The special positioning of the hammers on the rotor produces very fine shredding and the shredded material is evenly spread over the terrain. Skid runners for height adjustment. Hydraulic or manually controlled hinged hood. Very solid and sturdily built.

Boxing fixed hammer forest crusher features:

  • FIXED HAMMER ROTOR WITH SPIRAL DISTRIBUTION, LOW POWER ABSORPTION
  • ROTOR Ø 440 mm.
  • ROTOR TUBE 200X20 mm.
  • AXLE DIAMETER Ø 75 mm.
  • INTERCHANGEABLE TWIN CHASSIS MADE OF ANTI-WEAR MATERIAL
  • METAL CHASSIS WITH HIGH ELASTIC LIMIT
  • HAMMER BRACKET MADE OF ANTI WEAR MATERIAL
  • STEEL BEARING SHELLS
  • ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
  • HYDRAULIC CYLINDRES IN THE GATE INCLUDED
  • DOUBLE ROW OF FRONT GUARD CHAINS
  • TRANSMISSION INCLUDED

Boxing fixed hammer forest crusher models:

forestry model BOXING
Working widthOverall widthWeight Kg.HammersBeltsHP (indicative)R.P.M.Shaft
160020001380325-XPB100-13010001″ 3/4 Z-6
180022001440365-XPB110-15010001″ 3/4 Z-6
200024001550406-XPB120-18010001″ 3/4 Z-6
220026001700446-XPB140-20010001″ 3/4 Z-6

Boxing fixed hammer forest crusher accesories:

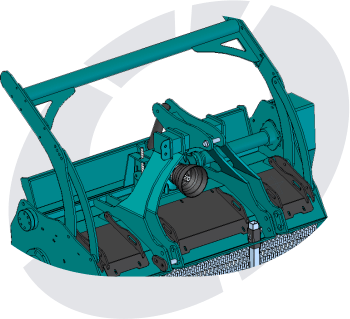

Mechanical adjustements bars

Third hydraulic point REF.

Plus transmission with automatic clutch
