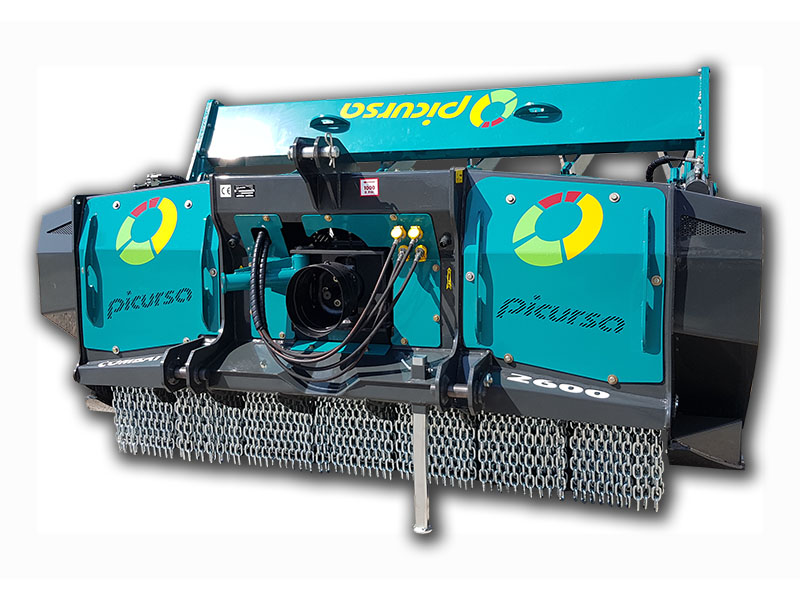

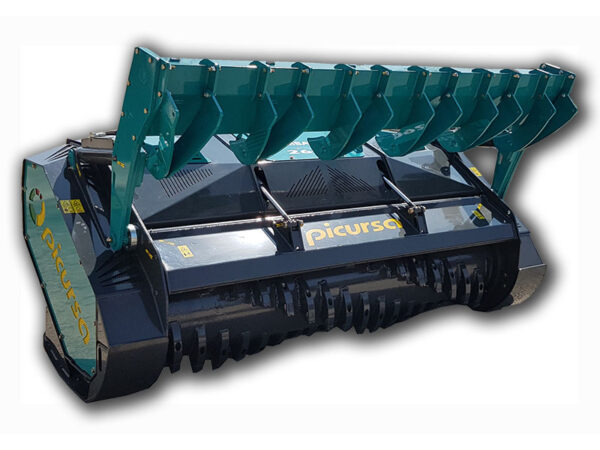

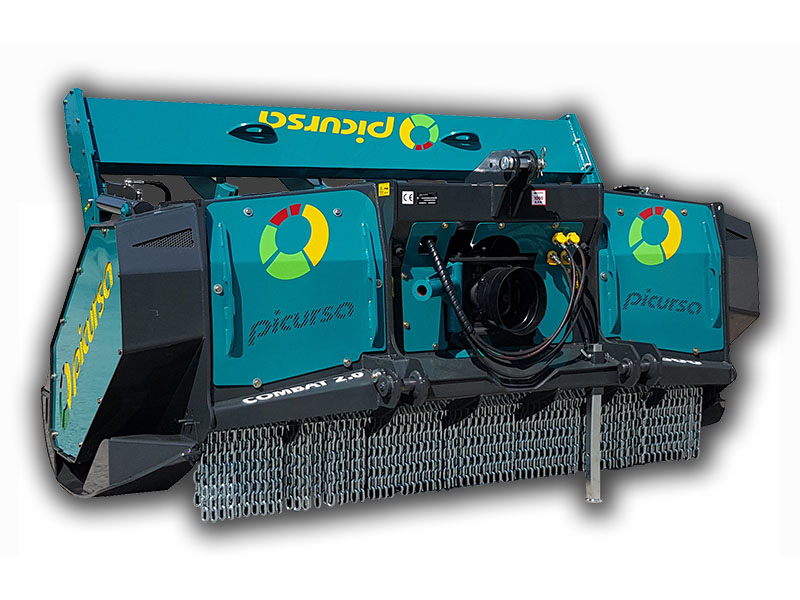

Combat mulcher
The COMBAT mulcher is specially designed to shred branches, small trees, tree stumps and debris from tree-felling.
Features:
Robustness
Innovation
Flexibility
Durability
Combat mulcher description:
The COMBAT mulcher is specially designed to shred branches, small trees, tree stumps and debris from tree-felling. This mulcher is designed for use with the most powerful tractors and for the most demanding customers. It is equipped with special alloy hammers with hard metal tips that make them more resistant and harderwearing. The special positioning of the hammers on the rotor produces very fine shredding and the shredded material is evenly spread over the terrain. Skid runners for height adjustment. Hydraulic or manually controlled hinged hood. Very solid and sturdily built.
Combat mulcher features:
- FIXED HAMMER ROTOR WITH SPIRAL DISTRIBUTION, LOW POWER ABSORPTION
- ROTOR Ø 740 mm.
- ROTOR TUBE 508 X 25 mm.
- AXLE DIAMETER Ø 120 mm.
- INTERCHANGEABLE TWIN CHASSIS MADE OF ANTI-WEAR MATERIAL
- CHASSIS WITH HIGH ELASTIC LIMIT MATERIAL
- HAMMER SUPPORT IN ANTI-WEAT MATERIAL
- STEEL BEARING SHELLS
- ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
- HYDRAULIC CYLINDRES IN THE GATE INCLUDED
- GROUP WITH FREE WHEEL INCLUDED
- REFRIGERATED GROUP
- TRANSMISSION INCLUDED
Combat mulcher models:
| Working width | Overall width | Weight Kg. | Hammers | Belts | HP (indicative) | R.P.M. | Shaft |
|---|---|---|---|---|---|---|---|
| 2200 | 2700 | 4320 | 63+4 | 10-XPC | 230-330 | 1000 | 1″ 3/4 Z-20 |
| 2400 | 2900 | 4700 | 70+4 | 10-XPC | 250-350 | 1000 | 1″ 3/4 Z-20 |
| 2600 | 3100 | 5100 | 77+4 | 12-XPC | 350-400 | 1000 | 1″ 3/4 Z-20 |
| 2800 | 3300 | 5480 | 84+4 | 12-XPC | 400-500 | 1000 | 1″ 3/4 Z-20 |
Combat mulcher accesories:

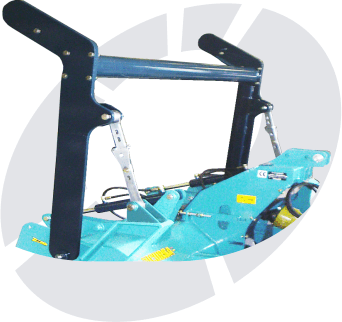

Mechanical adjustments bars

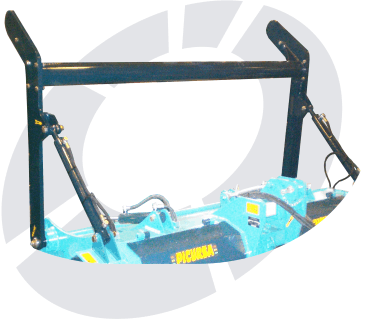

Hydraulically adjustments bars

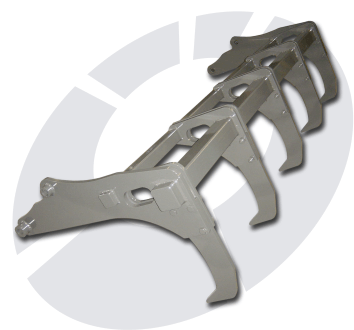

Hydraulic extender bars

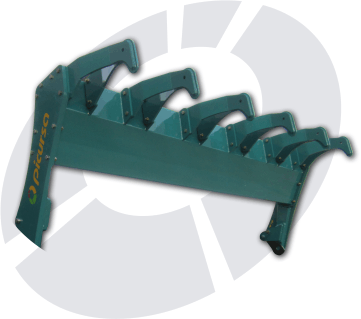

Hydraulic extender bars REF.
Third hydraulic point REF

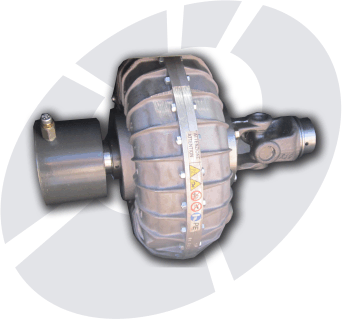

Fighter hidraulic clutches kit

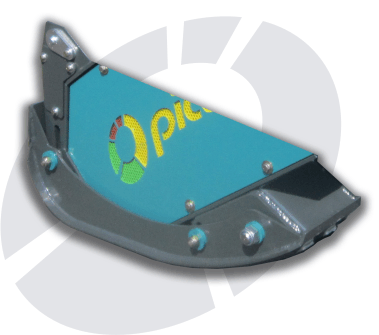

Hydraulic adjustable skates
