Extra-desplazable Mulcher for tractor
The EXTRA-DESPLAZABLE mulcher for tractor is specially designed to shred all types of crops, grass, low scrub and branches of up to 8cm in diameter.
Features:
![diametro 80 diametro 80](https://st1.picursa.com/wp-content/uploads/sites/2/2022/06/diametro-80.png)
![martillos M-10 martillos M-10](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/martillos-M-10.png)
Robustness
![](https://st1.picursa.com/wp-content/uploads/sites/2/2022/06/robustez.jpg)
Innovation
![](https://st1.picursa.com/wp-content/uploads/sites/2/2022/06/innovacion.jpg)
Flexibility
![](https://st1.picursa.com/wp-content/uploads/sites/2/2022/06/flexibilidad.jpg)
Durability
![](https://st1.picursa.com/wp-content/uploads/sites/2/2022/06/durabilidad.jpg)
Extra-desplazable Mulcher for tractor description:
The EXTRA-DESPLAZABLE mulcher for tractor is specially designed to shred all types of crops, grass, low scrub and branches of up to 8cm in diameter. Its main feature is its 1-metre offset, enabling it to operate under trees without the need for the tractor to come too close. Low power absorption. Very solid and sturdily built. Uniform shredding.
Extra-desplazable Mulcher for tractor features:
- SWING HAMMER ROTOR WITH SPECIAL DISTRIBUTION AND LOW POWER ABSORPTION
- ROTOR Ø 450 mm.
- ROTOR TUBE 160X15 mm.
- AXLE DIAMETER Ø 50 mm.
- TWIN CHASSIS
- STEEL BEARING SHELLS
- ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
- V-BELT WITH KEVLAR FIBRE
- HAMMERS WITH LOW POWER ABSORPTION
- HAMMER SCREWS MADE OF 12.9 STEEL
- FRONT GUARD CHAINS INCLUDED
- TRANSMISSION INCLUDED
Extra-desplazable Mulcher for tractor models:
Working width | Overall width | Weight Kg. | Hammers | Belts | HP (indicative) | R.P.M. | Shaft |
---|---|---|---|---|---|---|---|
1800 | 2040 | 1110 | 16 | 4 | 70-90 | 540-1000 | 1″ 3/8 Z-6 |
2000 | 2240 | 1140 | 20 | 5 | 80-100 | 540-1000 | 1″ 3/8 Z-6 |
2200 | 2440 | 1170 | 20 | 5 | 90-110 | 540-1000 | 1″ 3/8 Z-6 |
2400 | 2640 | 1215 | 24 | 5 | 90-110 | 540-1000 | 1″ 3/8 Z-6 |
Extra-desplazable Mulcher for tractor accesories:
![](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/ARCO-TERCER-PUNTO-REVERSIBLE-EXTRADESPLAZABLE.png)

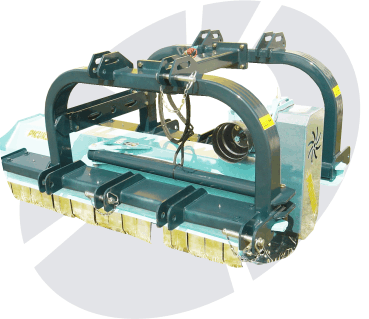

Reversible third point arch
![](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/RASCADOR-RULO.png)
Rear roller scraper
![](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/TRANSMISION-CON-RUEDA-LIBRE.png)
Plus free wheel transmission
![](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/GRUPO-CON-RUEDA-LIBRE.png)
Plus group with free wheel
![](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/GOMAS-DELANTERAS-DE-PROTECCION.png)

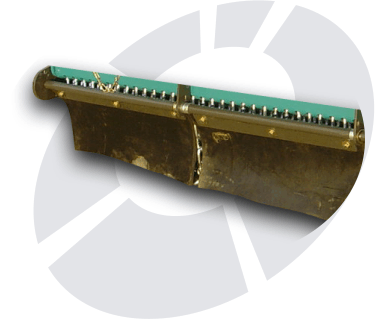

Front bands to protect 3 tarpaulins
![](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/GRUPO-REVERSIBLE.png)
Plus group reversible
![](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/ENGANCHE-ADICIONAL-EXTRADESPLAZABLE.png)

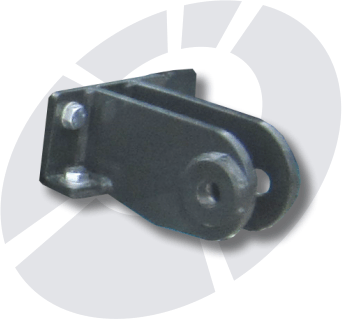

Additional coupling

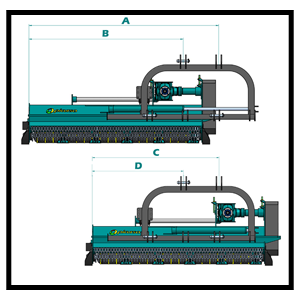

Working width | A mm. | B mm. | C mm. | D mm. |
---|---|---|---|---|
1800 | 2020 | 1570 | 1420 | 970 |
2000 | 2220 | 1770 | 1420 | 970 |
2200 | 2420 | 1970 | 1620 | 1170 |
2400 | 2620 | 2170 | 1820 | 1370 |
