Forestry brush cutter with chains
This forestry brush cutter is specially designed for brush and scrubland clearance, creation of pastures and cleaning up natural areas.
- Diameter of branches:
0-5cm10-15cm - Type of machinery:
Tractor 50-100cvTractor 100-150cv
Features:


Robustness

Innovation

Flexibility

Durability

Forestry brush cutter with chains description:
This forestry brush cutter is specially designed for brush and scrubland clearance, creation of pastures and cleaning up natural areas. It is designed for use with tractors from 60 to 120 HP and with working widths of between 1400 and 2000mm. It is equipped with a high quality speed increasing gearbox and special 18 mm diameter GR-8 (carbon alloy steel) anti-wear chains. Skid runners for height adjustment. Very solid and sturdily built.
Forestry brush cutter with chains features:
- THICKNESS OF PLATE 8 mm. WITH HIGH ELASTIC LIMIT
- CHAINS GR-8 Ø18 mm.
- QUICK HITCH CHAIN
- FLOATING CUTTER WITH CHAINS
- FRICTION CLUTCH TRANSMISSION
- 60 HP – 75 HP GROUP
Forestry brush cutter with chains models:
Working width | Overall width | Weight Kg. | Nº chains | Ø chains | HP (indicative) | R.P.M. | Shaft |
---|---|---|---|---|---|---|---|
1400 | 1580 | 410 | 4 | 18 | 60-90 | 540 | 1″ 3/8 Z-6 |
1600 | 1780 | 460 | 4 | 18 | 70-100 | 540 | 1″ 3/8 Z-6 |
1800 | 1980 | 520 | 4 | 18 | 80-110 | 540 | 1″ 3/8 Z-6 |
2000 | 2080 | 580 | 4 | 18 | 90-120 | 540 | 1″ 3/8 Z-6 |
Forestry brush cutter with chains accesories:

Blade plate

Fixed rear wheels

Hydraulic movement

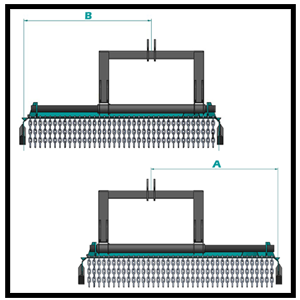

Working width | A mm. | B mm. |
---|---|---|
1800 | 1090 | 1090 |
2000 | 1290 | 1290 |
