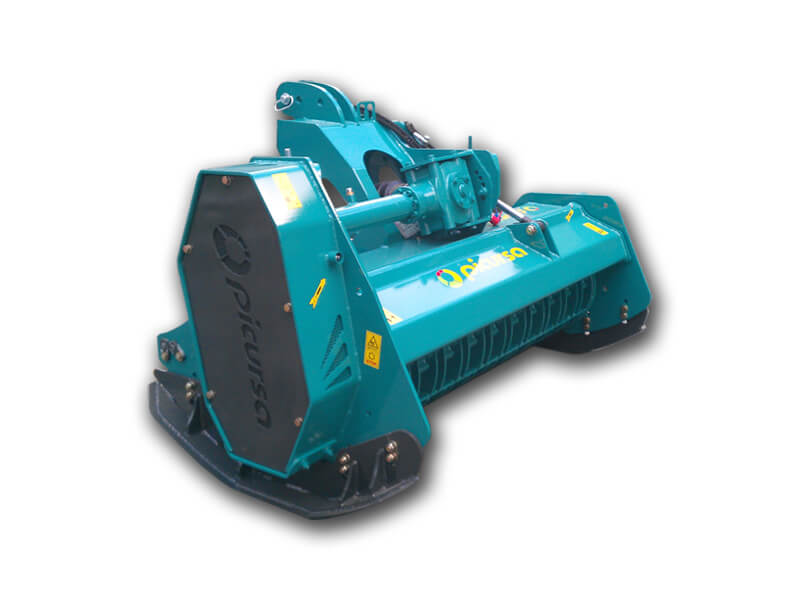

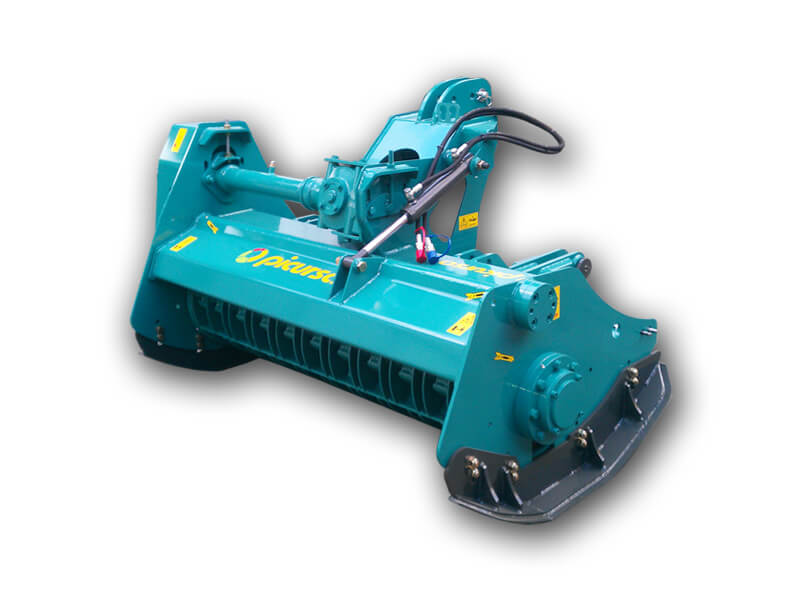

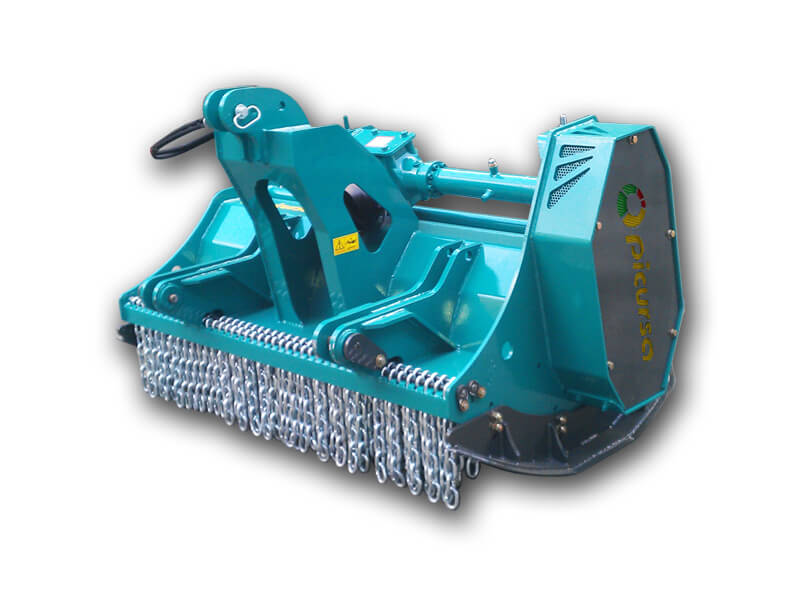

Forestry mulcher Rotor 350 Mulcher with Swinging Hammers

The Rotor 350 Mulcher with Swinging Hammers is specially designed to shred pruned branches, small trees and debris from tree-felling and scrub clearance.

Robustness

Innovation

Flexibility

Durability

SKU: 297 Category:

Forestry mulcher Rotor 350 Mulcher with Swinging Hammers description:

The Rotor 350 Mulcher with Swinging Hammers is specially designed to shred pruned branches, small trees and debris from tree-felling and scrub clearance. This mulcher is designed for use with tractors from 60 to 140 HP. It is equipped with a rotor containing three rows of swinging hammers that are concealed inside the rotor to protect them from strong impacts from tree trunks or stones, lengthening the useful life of the hammers. The special positioning of the hammers on the rotor produces very fine shredding and the shredded material is evenly spread over the terrain. Skid runners for height adjustment. Hydraulic or manually controlled hinged hood. Very solid and sturdily built.

Forestry mulcher Rotor 350 Mulcher with Swinging Hammers features:

  • SWING HAMMER ROTOR WITH SPECIAL DISTRIBUTION AND LOW POWER ABSORPTION
  • ROTOR Ø 540 mm.
  • ROTOR STRUCTURE MADE OF ANTI-WEAR MATERIAL Ø 420 mm.
  • AXLE DIAMETER Ø 90 mm.
  • METAL CHASSIS WITH HIGH ELASTIC LIMIT
  • STEEL BEARING SHELLS
  • ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
  • V-BELT WITH KEVLAR FIBRE
  • F-127 HAMMER DIBBERS
  • HYDRAULIC CYLINDRES FOR THE HINGED HOOD
  • FREE WHEEL TRANSMISSION INCLUDED

Forestry mulcher Rotor 350 Mulcher with Swinging Hammers models:

FORESTRY MODEL rotor 350
Working widthOverall widthWeight Kg.HammersBeltsHP (indicative)R.P.M.Shaft
12001500105023460-80540-10001″ 3/8 Z-6
14001700114026470-90540-10001″ 3/8 Z-6
16001900123032480-110540-10001″ 3/8 Z-6
18002100132035590-120540-10001″ 3/8 Z-6
200023001410386110-140540-10001″ 3/8 Z-6

Forestry mulcher Rotor 350 Mulcher with Swinging Hammers accesories:

Hydraulic adjustment bars

Mechanical adjustment bars

Grated fine shredding

Hydraulic extender bars

Third hydraulic point
