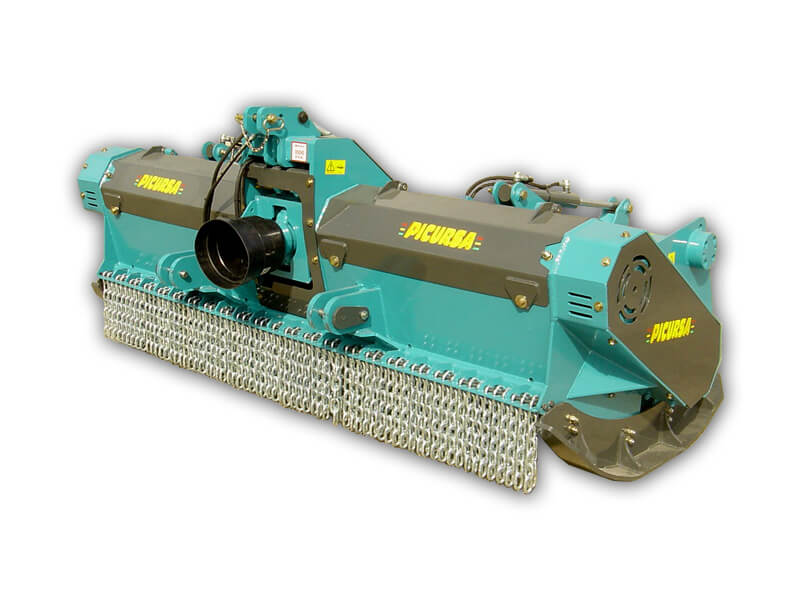

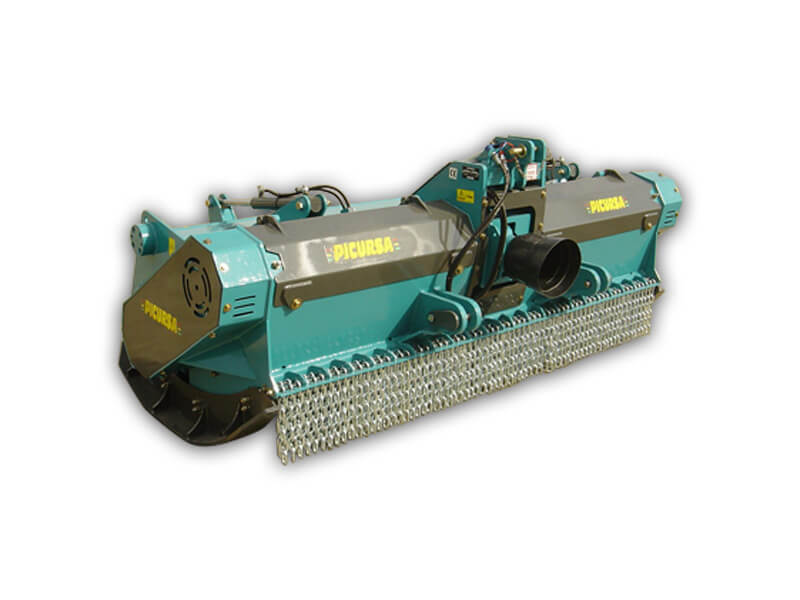

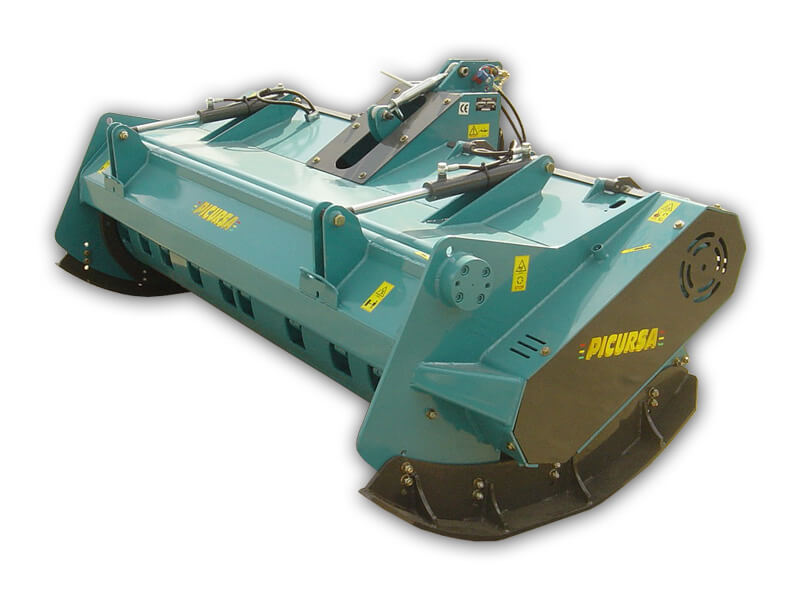

Rotor 550 Mulcher
The Rotor 550 Mulcher is specially designed to shred pruned branches, small trees and debris from tree-felling and scrub clearance.
Rotor 550 Mulcher description:
The Rotor 550 Mulcher is specially designed to shred pruned branches, small trees and debris from tree-felling and scrub clearance. This mulcher is designed for use with tractors from 200 to 320 HP. It is equipped with a rotor containing four rows of swinging hammers that are concealed in the interior of the rotor to protect them from strong impacts from tree trunks or stones, lengthening the useful life of the hammers. The special positioning of the hammers on the rotor produces very fine shredding and the shredded material is evenly spread over the terrain. All models are equipped with a PTO shaft on both sides of the rotor. Skid runners for height adjustment. Hydraulic or manually controlled hinged hood. Very solid and sturdily built.
Rotor 550 Mulcher features:
- SWING HAMMER ROTOR WIH SPECIAL DISTRIBUTION AND LOW POWER ABSORPTION
- ROTOR Ø 660 mm.
- ROTOR STRUCTURE MADE OF ANTI-WEAR MATERIAL AND Ø 540 mm.
- AXLE DIAMETER Ø 90 mm.
- METAL CHASSIS WITH HIGH ELASTIC LIMIT
- INTERCHANGEABLE TWIN CHASSIS MADE OF ANTI-WEAR MATERIAL
- STEEL BEARING SHELLS
- ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
- V-BELT WITH KEVLAR FIBRE
- F-127 HAMMER DIBBERS
- HYDRAULIC CYLINDRES IN THE HINGED HOOD INCLUDED
- GROUP WITH FREE WHEEL
- TRANSMISSION INCLUDED
Rotor 550 Mulcher models:
|Working width||Overall width||Weight Kg.||Hammers||Belts||HP (indicative)||R.P.M.||Shaft|
|2000 – 2EF||2380||2890||30||8||200-260||1000||1″3/4 Z-6|
|2170 – 2EF||2550||3120||34||8||220-280||1000||1″3/4 Z-6|
|2400 – 2EF||2780||3250||36||8||240-300||1000||1″3/4 Z-6|
|2600 – 2EF||2980||3410||38||10||260-320||1000||1″3/4 Z-6|
Rotor 550 Mulcher accesories:
Mechanical adjustements bars
Hydraulic adjustments bars
Hydraulic extender bars

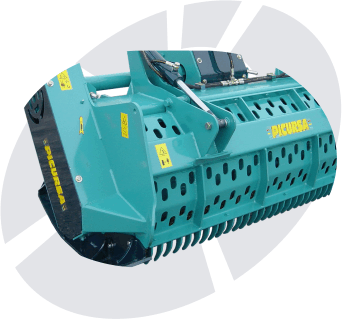

Grated fine shredding
Third hydraulic point
