Hammer-S forestry cutter grinder

The HAMMER-S forestry cutter grinder is especially designed for the preparation of soil, grinding stumps and roots of up to 60 cm. in diameter in a depth of 40 cm. obtaining an optimal result for sowing or planting without any additional process.

Robustness

Innovation

Flexibility

Durability

SKU: 352 Category:

Hammer-S forestry cutter grinder description:

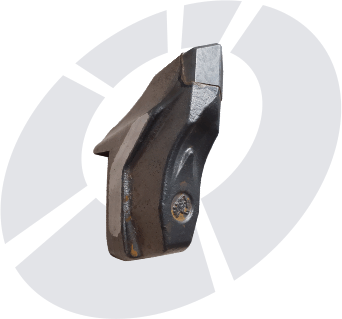

The HAMMER-S forestry cutter grinder is especially designed for the preparation of soil, grinding stumps and roots of up to 60 cm. in diameter in a depth of 40 cm. obtaining an optimal result for sowing or planting without any additional process. This mulcher is designed for use with the most powerful tractors and for the most demanding customers. It is equipped with special alloy hammers with hard metal tips that make them more resistant and harder-wearing. The special positioning of the hammers on the rotor produces very fine shredding and the shredded material is evenly spread over the terrain. Hydraulic or manually controlled hinged hood. Very solid and sturdily built.

Hammer-S forestry cutter grinder features:

  • FIXED HAMMER ROTOR WITH SPIRAL DISTRIBUTION, LOW POWER ABSORPTION
  • ROTOR Ø 750 mm.
  • ROTOR TUBE 406X20 mm.
  • AXLE DIAMETER Ø 120 mm.
  • INTERCHANGEABLE TWIN CHASSIS MADE OF ANTI-WEAR MATERIAL
  • METAL CHASSIS WITH HIGH ELASTIC LIMIT
  • HAMMER SUPPORT MADE OF ANTI-WEAR MATERIAL
  • STEEL BEARING SHELLS
  • ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
  • CARBON TOOTHED DRIVE BELTS 125 mm.
  • SWING GROUP SUPPORT
  • REFRIGERATED GROUP
  • HYDRAULIC CYLINDRES IN THE GATE INCLUDED
  • TRANSMISSION WITH AUTOMATIC CLUTCH
  • TRANSMISSION INCLUDED

OPTIONAL ACCESOIRES:

Hammer-S forestry cutter grinder models:

HAMMER-S FORESTRY MULCHER MILLING MACHINE
Working widthOverall widthWeight Kg.HammersBeltsHP (indicative)R.P.M.Shaft
220027054040602-125 CARBON POLY-CHAIN240-30010001″3/4 Z-6
241029154425662-125 CARBON POLY-CHAIN260-32010001″3/4 Z-6
260031054775722-125 CARBON POLY-CHAIN300-40010001″3/4 Z-6

Hammer-S forestry cutter grinder accesories:

Third hydraulic point REF.
