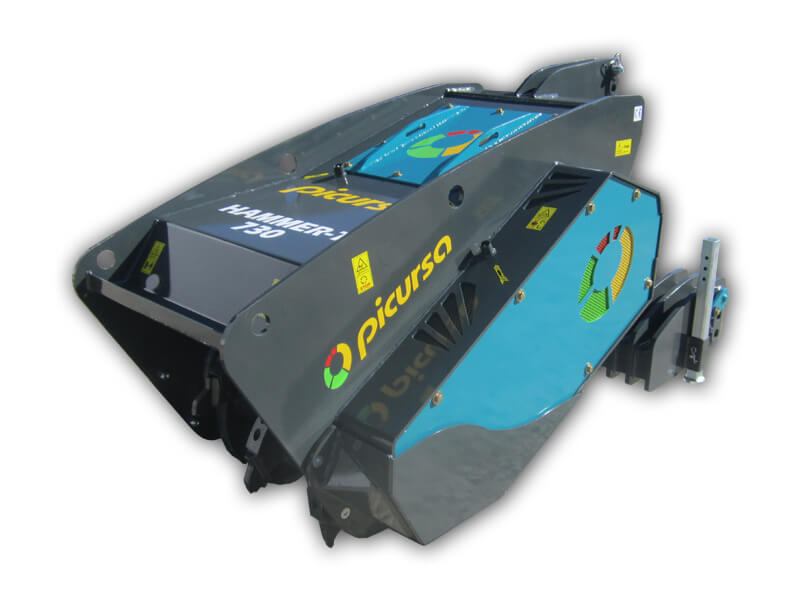

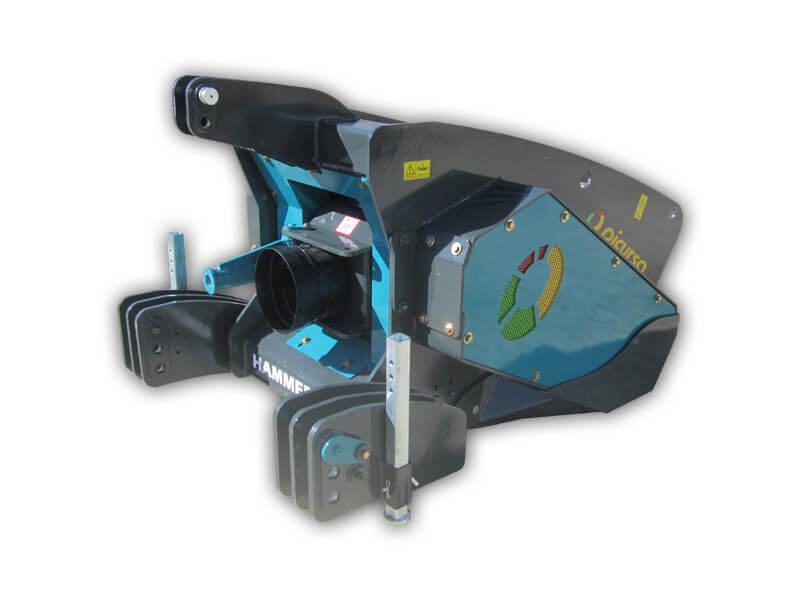

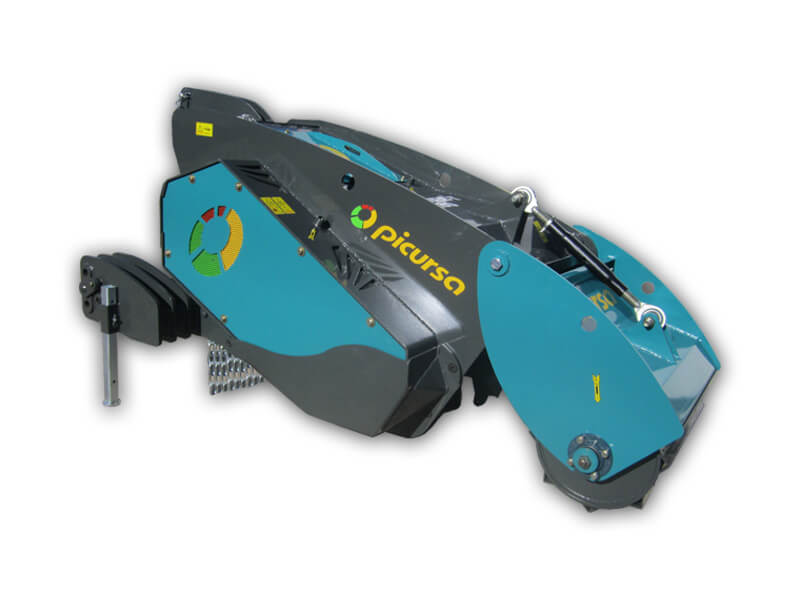

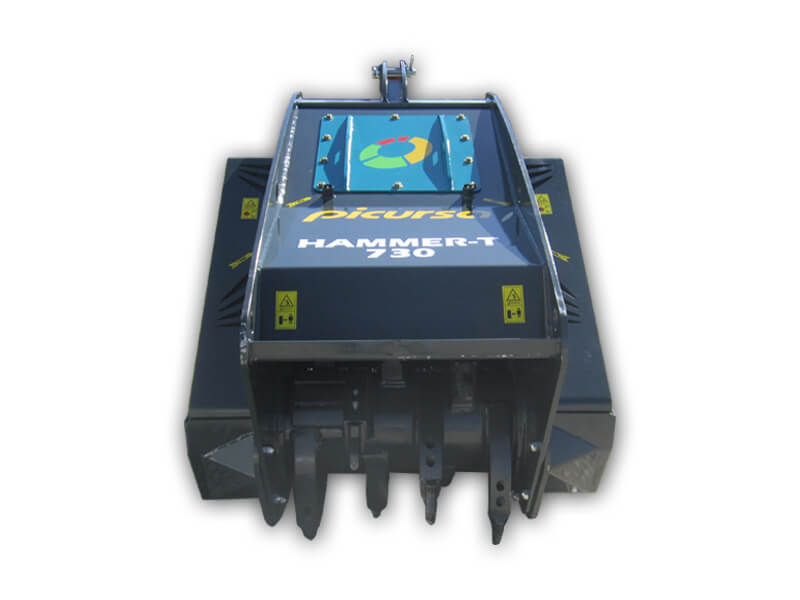

HAMMER-T forestry cutter grinder
The HAMMER-T forestry cutter grinder is especially designed to cut stumps of plantations and rows of stumps up to 20 cm. of all types of trees in the severest conditions up to a depth of 35 cm.
Features:
Robustness
Innovation
Flexibility
Durability
HAMMER-T forestry cutter grinder description:
The HAMMER-T forestry cutter grinder is especially designed to cut stumps of plantations and rows of stumps up to 20 cm. of all types of trees in the severest conditions up to a depth of 35 cm. It can continue working under ground between the stumps, leaving the soil prepared for fresh sowing or planting of trees. This mulcher is designed for use with the most powerful tractors and for the most demanding customers. It is equipped with special alloy hammers with hard metal tips that make them more resistant and harder-wearing. The special positioning of the hammers on the rotor produces very fine shredding and the shredded material is evenly
spread over the terrain. Very solid and sturdily built.
HAMMER-T forestry cutter grinder features:
- FIXED HAMMER ROTOR WITH SPIRAL DISTRIBUTION, LOW POWER ABSORPTION
- ROTOR Ø 850 mm.
- ROTOR TUBE 406X20 mm.
- AXLE DIAMETER Ø 100 mm.
- INTERCHANGEABLE TWIN CHASSIS MADE OF ANTI-WEAR MATERIAL
- METAL CHASSIS WITH HIGH ELASTIC LIMIT
- HAMMER SUPPORT MADE OF ANTI-WEAR MATERIAL
- STEEL BEARING SHELLS
- ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
- CARBON TOOTHED DRIVE BELTS 90 mm.
- SWING GROUP SUPPORT
- TRANSMISSION INCLUDED
CHARACTERISTIC TO CHOOSE:
HAMMER-T forestry cutter grinder models:
| Working width | Overall width | Weight Kg. | Hammers | Belts | HP (indicative) | R.P.M/v | Shaft |
|---|---|---|---|---|---|---|---|
| 530 | 1030 | 1765 | 15 | 2 de 90 | 130-200 | 1000 | 1″3/4 Z-6 |
| 730 | 1230 | 2300 | 18 | 2 de 90 | 140-220 | 1000 | 1″3/4 Z-6 |
| 830 | 1330 | 2635 | 21 | 2 de 90 | 160-250 | 1000 | 1″3/4 Z-6 |
HAMMER-T forestry cutter grinder accesories:
Rear roller
Third hydraulic point REF.

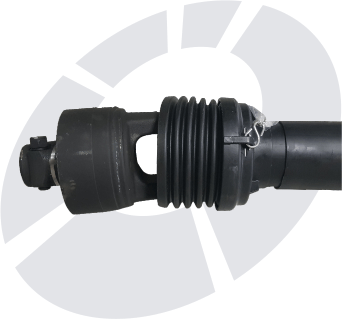

Plus transmission with automatic clutch
