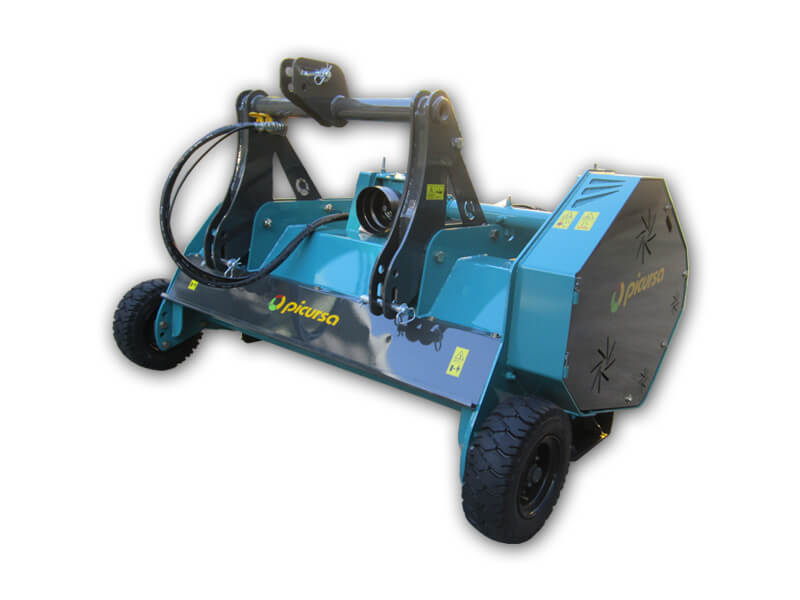

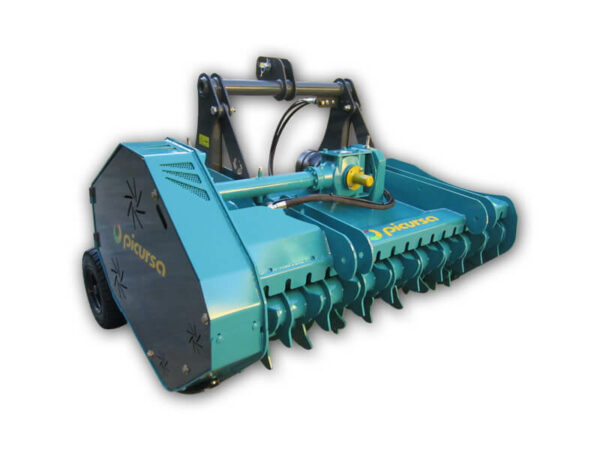

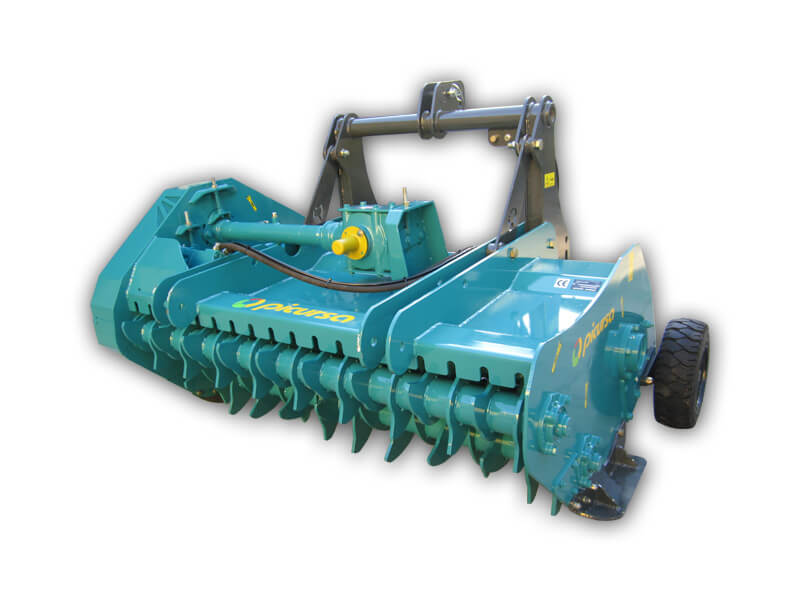

Jaguar mulcher

The JAGUAR mulcher is specially designed to shred all kinds of pruned branches from trees such as almond, citrus and olive.

Robustness

Innovation

Flexibility

Durability

SKU: 339 Category:

Jaguar mulcher description:

The JAGUAR mulcher is specially designed to shred all kinds of pruned branches from trees such as almond, citrus and olive. The mulcher is designed to operate in both forward and reverse drive, with a double pick-up feeder to pass the branches into the shredding chamber. It is available with two types of rotors: with hammers or ARANDISH rotor. The system of interchangeable PICURSA grids allows the fineness of shredding and the shredding speed to be selected. Low power absorption. Roller or wheels for height adjustment. Hinged hood offers easy access to the hammers. Very solid and sturdily built. Uniform shredding.

Jaguar mulcher features:

  • SWINGING HAMMER ROTOR, LOW POWER ABSORPTION
  • ROTOR Ø 500 mm.
  • TWIN CHASSIS
  • STEEL BEARING SHELLS
  • ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
  • V-BELT WITH KEVLAR FIBRE
  • FREE WHEEL TRANSMISSION INCLUDED
  • FLOW ADJUSTER INCLUDED

ROTOR TB:

  • ROTOR TUBE 220X10 mm.
  • AXLE DIAMETER Ø 60 mm
  • HAMMER SCREWS MADE OF 12.9 STEEL.

ARANDISH ROTOR:

  • ROTOR STRUCTURE MADE OF ANTI-WEAR MATERIAL Ø 390 mm.
  • AXLE DIAMETER Ø 70 mm.
  • HAMMER DIBBERS F-1270 STEEL.

Jaguar mulcher models:

JAGUAR MODEL (HAMMERS)
Working widthTotal widthWeight Kg.HammersV-BeltsHP (Indicative)R.P.M.Shaft
16002030140016590-130540-10001″3/8 Z-6
180022301550165100-140540-10001″3/8 Z-6
200024301680205110-180540-10001″3/8 Z-6
MODELO JAGUAR (FORESTRY ARANDISH ROTOR)
Working widthTotal widthWeight Kg.BladesV-BeltsHP (Indicative)R.P.M.Shaft
160020301570305110-150540-10001″3/8 Z-6
180022301760345120-160540-10001″3/8 Z-6
200024301950385130-200540-10001″3/8 Z-6

Jaguar mulcher accesories:

Plus group reversible

test machine

Double cutter Jaguar

Interchangeable grate set
