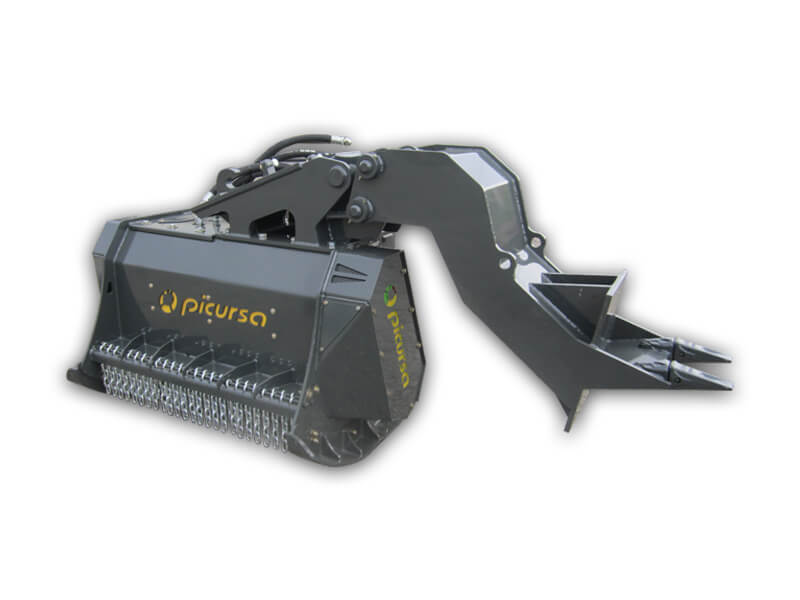

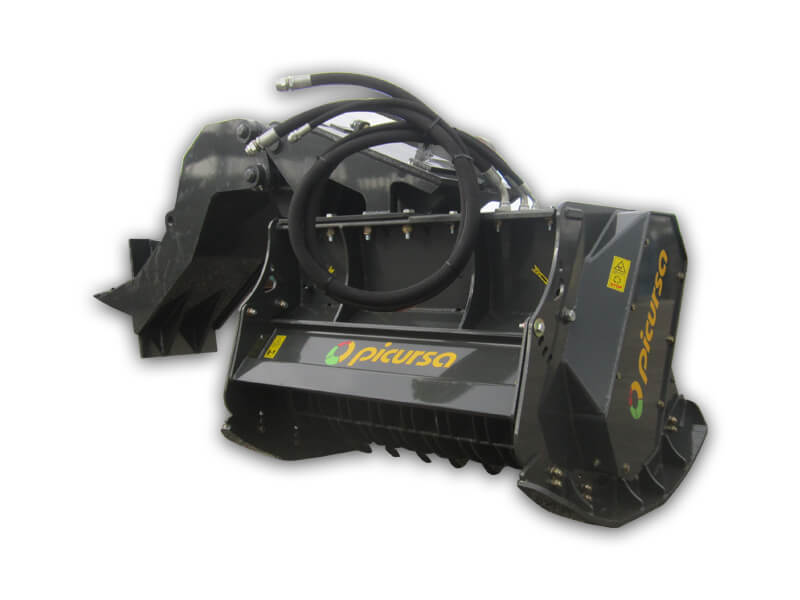

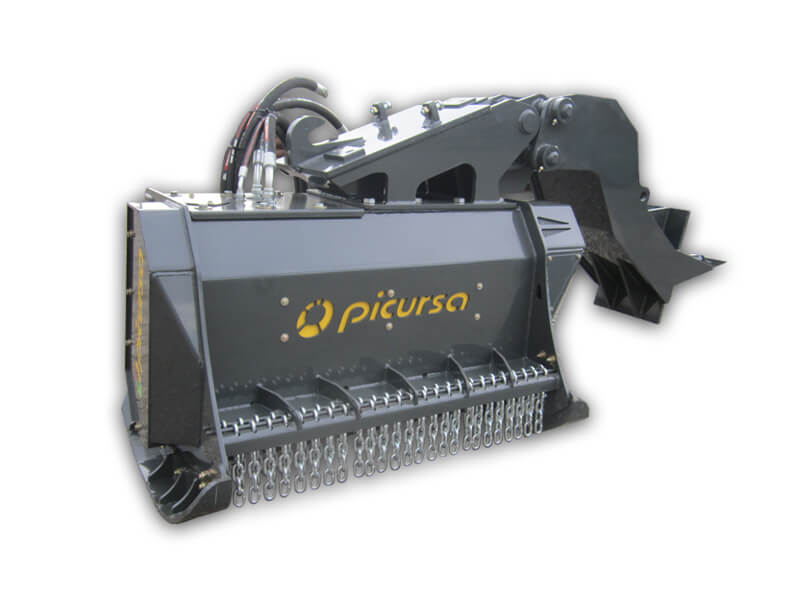

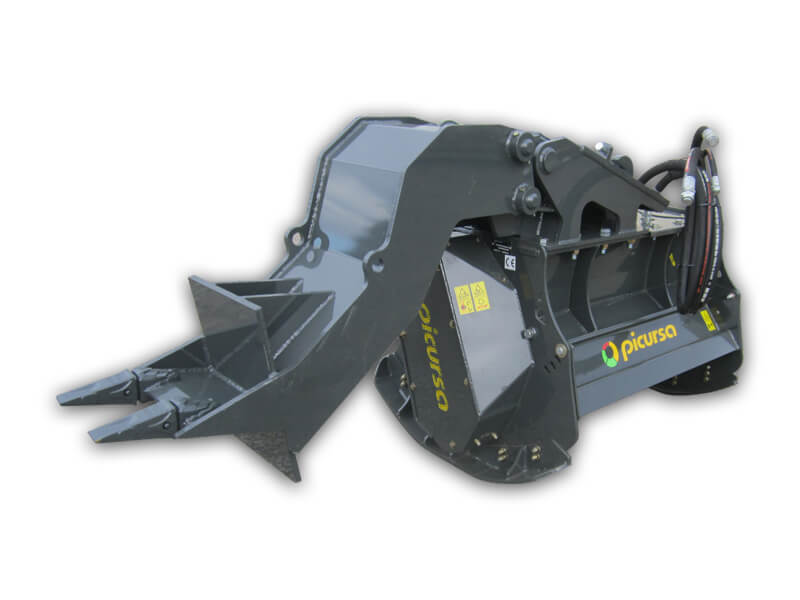

Retro Forestal boom mounted mulcher for excavator or backhoe

The RETRO FORESTAL boom mounted mulcher for excavator is specially designed to shred pruned branches, small trees and debris from tree-felling and scrub clearance.

Robustness

Innovation

Flexibility

Durability

SKU: 324 Categories: ,

Retro Forestal boom mounted mulcher for excavator or backhoe description:

The RETRO FORESTAL boom mounted mulcher for excavator is specially designed to shred pruned branches, small trees and debris from tree-felling and scrub clearance. Its design enables it to be mounted onto any model of excavator or backhoe and comes with a hydraulic motor that depends on the litres of oilflow and pressure of each machine. It is equipped with a rotor containing three rows of swinging hammers that are concealed inside the rotor to protect them from strong impacts from tree trunks or stones, lengthening the useful life of the hammers. The special positioning of the hammers on the rotor produces very fine shredding and the shredded material is evenly spread over the terrain. Skid runners for height adjustment. Manually controlled hinged hood. Very solid and sturdily built.

Retro Forestal boom mounted mulcher for excavator or backhoe features:

  • SWINGING HAMMER ROTOR, LOW POWER ABSORPTION
  • ROTOR Ø 540 mm.
  • ROTOR STRUCTURE MADE OF ANTI-WEAR MATERIAL Ø 420 mm.
  • AXLE DIAMETER Ø 90 mm.
  • METAL CHASSIS WITH HIGH ELASTIC LIMIT
  • STEEL IRON BEARING SHELLS
  • ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
  • V-BELT KEVLAR FIBRES
  • HAMMERS 360º ROTATION
  • HAMMERS SCREWS MADE OF F-127 STEEL
  • FRONT GUARD CHAINS
  • ANGULAR PISTON HYDRAULIC MOTOR R Pmax=350 bar
  • BY-PASS SYSTEM INCLUDED
  • HOSES 4 MAYAS UP TO HAMMER INSTALLATION INCLUDED

Retro Forestal boom mounted mulcher for excavator or backhoe models:

FORESTAL retro arm MODEL
Working widthExcavator weightLitersTotal widthWeight Kg.HammersBelts
120014-24 Tn.100-28015001025235
150016-24 Tn.100-28018001225295
180016-24 Tn. 100-28021001425356

Retro Forestal boom mounted mulcher for excavator or backhoe accesories:

Quick custom-built

Support ryper

Quick custom-built with support hitch

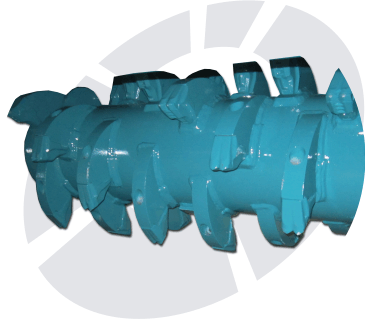

Fixed hammer rotor Tekken

How does our Retro Forestry Arm Shredder work?

Picursa shredder works

Picursa shredder works

Picursa shredder works
