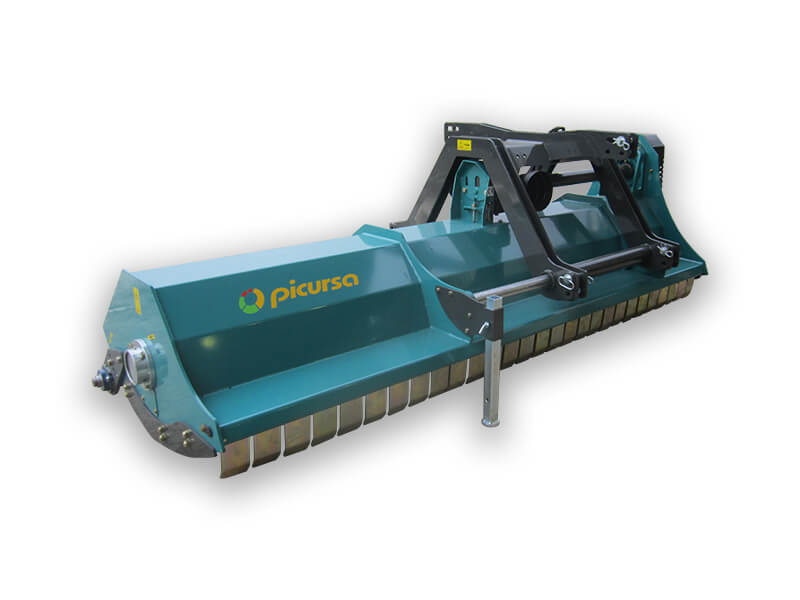

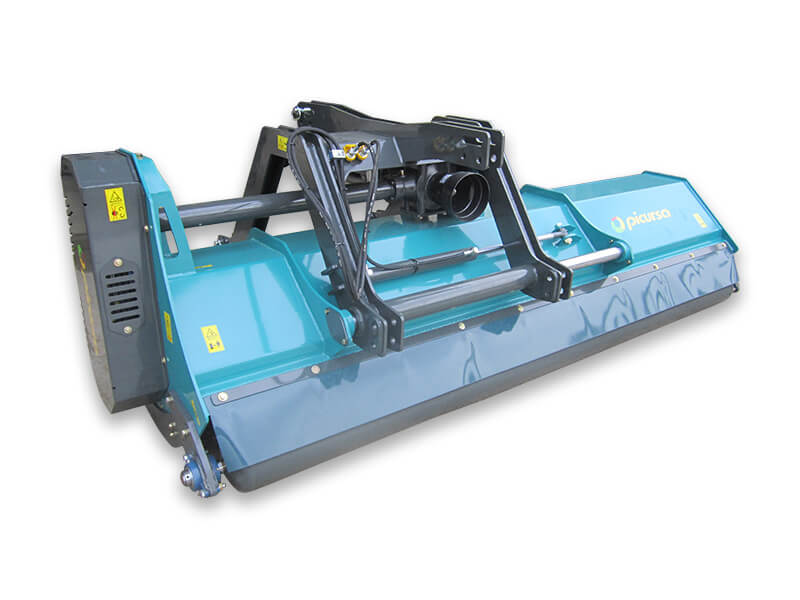

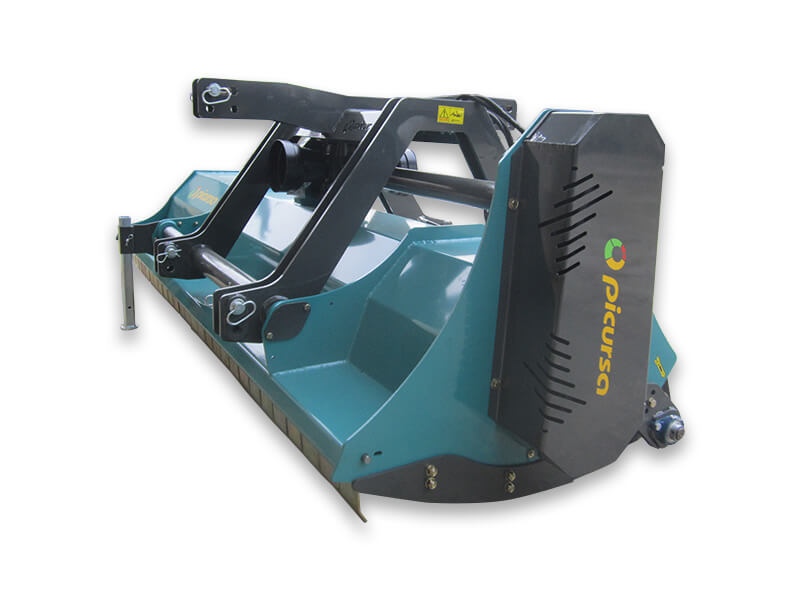

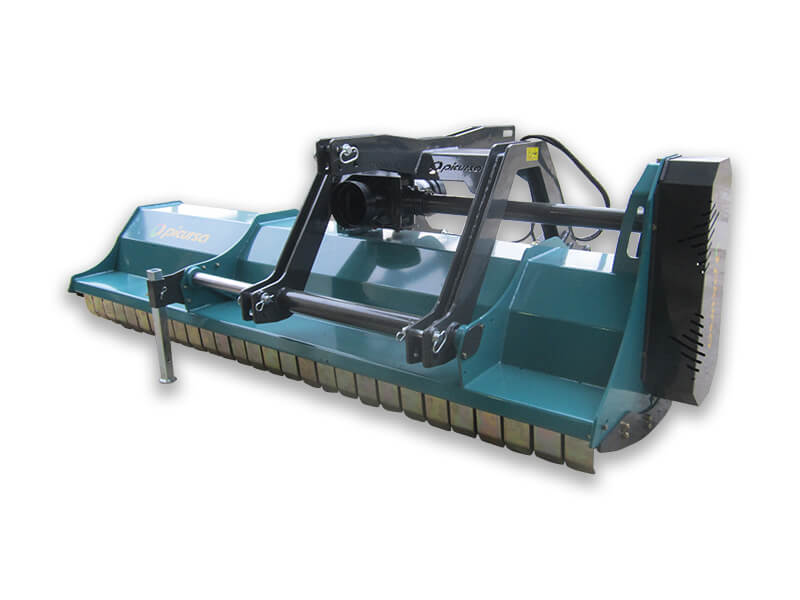

TA-Munich mulcher
The TA mulcher for tractor is specially designed to shred all types of crops, grass, low scrub and branches of up to 12cm in diameter.
Features:
Robustness
Innovation
Flexibility
Durability
TA-Munich mulcher description:
The TA mulcher for tractor is specially designed to shred all types of crops, grass, low scrub and branches of up to 12cm in diameter. Low power absorption. Its 300mm diameter rotor provides excellent shredding at high speeds. Rear roller for height adjustment and coupling on both sides. Hydraulic offsetting for adaptation to the terrain. Very solid and sturdily built. Uniform shredding.
TA-Munich mulcher features:
- SWING HAMMER ROTOR WITH SPECIAL DISTRIBUTION AND LOW POWER ABSORPTION
- ROTOR Ø 600 mm.
- ROTOR TUBE 300X10 mm.
- AXLE DIAMETER Ø 60 mm.
- TWIN CHASSIS
- STEEL BEARING SHELLS
- ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
- FLOATING WORK SYSTEM
- V-BELT WITH KEVLAR FIBRE
- HAMMERS WITH LOW POWER ABSORPTION
- HAMMER SCREWS MADE OF 12.9 STEEL
- REAR ROLLER
- REVERSIBLE GROUP INCLUDED
- TRANSMISSION INCLUDED
TA-Munich mulcher models:
| Working width | Total width | Weight Kg. | Hammers | Belts | HP (indicative) | R.P.M. | Shaft |
|---|---|---|---|---|---|---|---|
| 2500 | 2750 | 1340 | 24 | 4 | 100-120 | 1000 | 1″ 3/8 Z-6 |
| 2600 | 2850 | 1385 | 24 | 4 | 100-120 | 1000 | 1″ 3/8 Z-6 |
| 2800 | 3050 | 1490 | 26 | 5 | 110-130 | 1000 | 1″ 3/8 Z-6 |
| 3000 | 3250 | 1585 | 30 | 5 | 130-150 | 1000 | 1″ 3/8 Z-6 |
| 3200 | 3450 | 1690 | 30 | 6 | 140-180 | 1000 | 1″ 3/8 Z-6 |
TA-Munich mulcher accesories:
Front chain set
Rear roller scraper

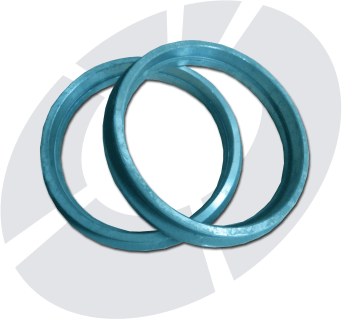

Dust-guard set for wires

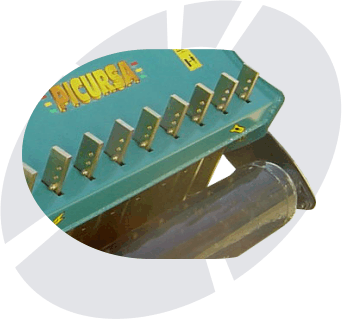

Retainer spikes
| Working width | A mm. | B mm. |
|---|---|---|
| 2600 | 1480 | 1950 |
| 2800 | 1580 | 2050 |
| 3000 | 1680 | 2150 |
| 3200 | 1780 | 2250 |
