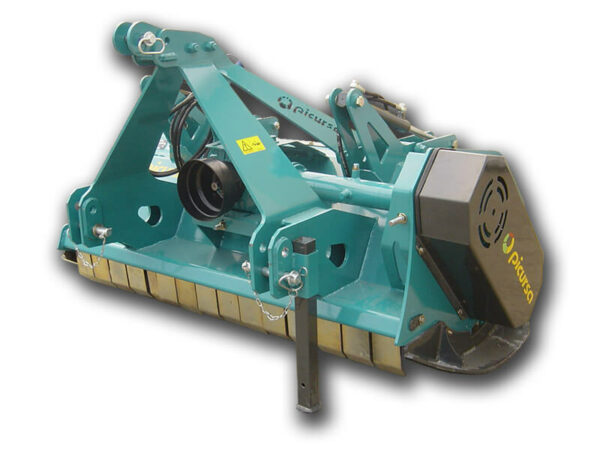

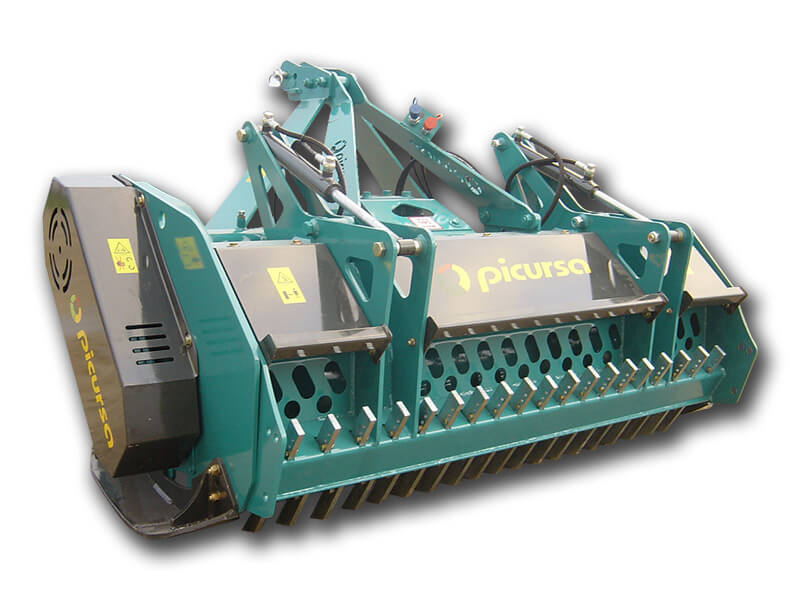

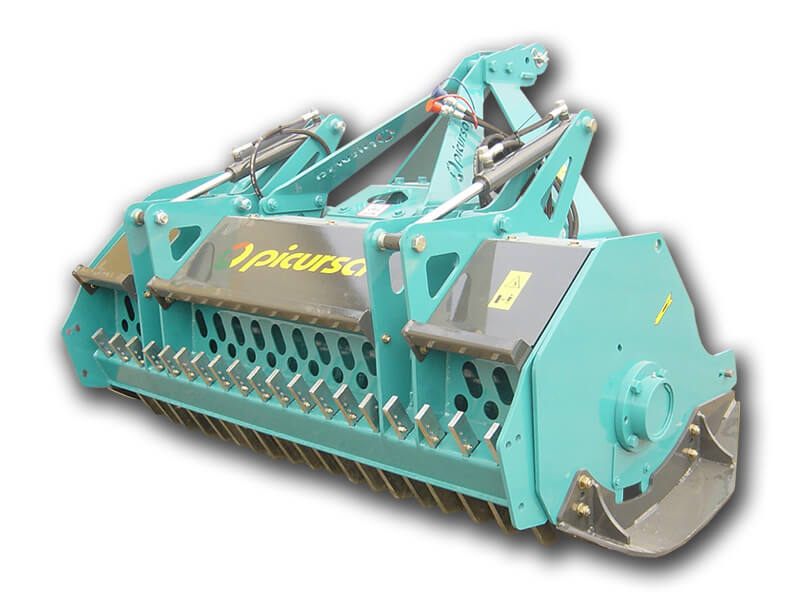

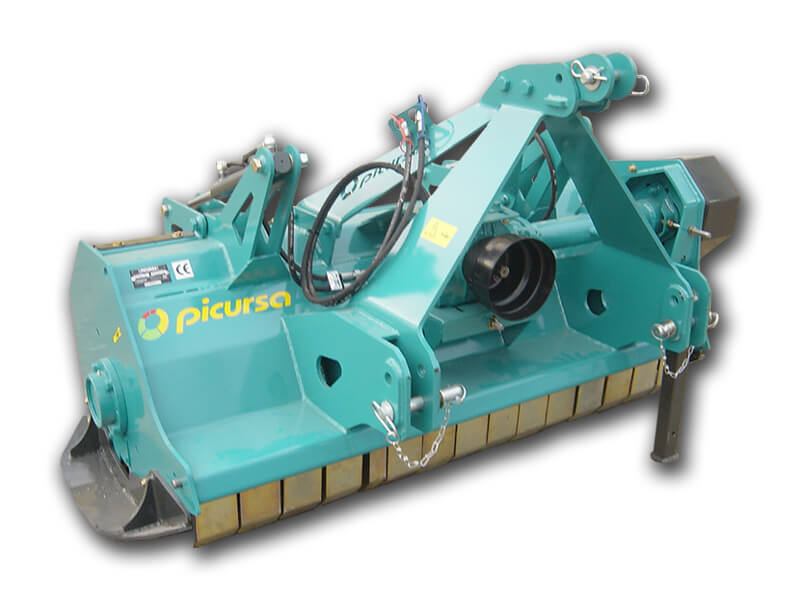

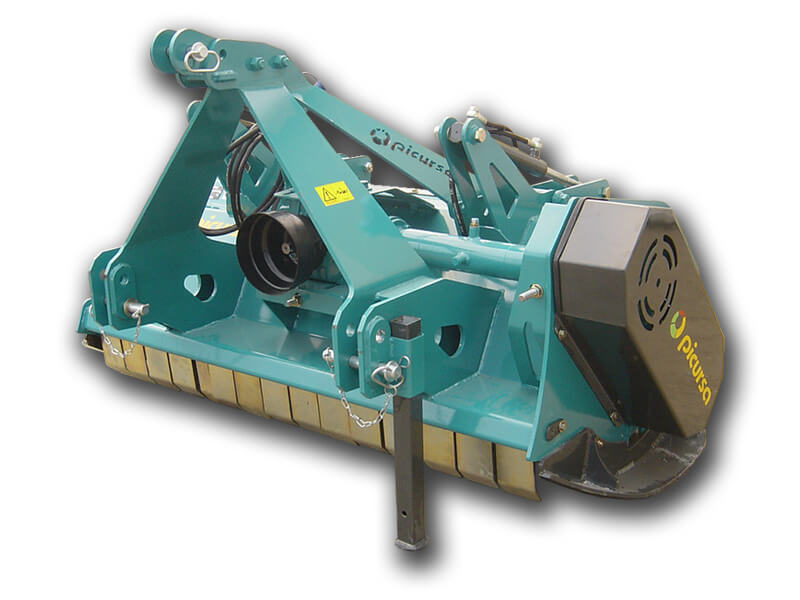

TB Parrilla Mulcher for tractor
The TB PARRILLA mulcher for tractor is specially designed to shred all types of crops, grass, low scrub and branches of up to 10cm in diameter.
Features:
![diametro 100 diametro 100](https://st1.picursa.com/wp-content/uploads/sites/2/2022/06/diametro-100.png)
![martillos M-10 martillos M-10](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/martillos-M-10.png)
Robustness
![](https://st1.picursa.com/wp-content/uploads/sites/2/2022/06/robustez.jpg)
Innovation
![](https://st1.picursa.com/wp-content/uploads/sites/2/2022/06/innovacion.jpg)
Flexibility
![](https://st1.picursa.com/wp-content/uploads/sites/2/2022/06/flexibilidad.jpg)
Durability
![](https://st1.picursa.com/wp-content/uploads/sites/2/2022/06/durabilidad.jpg)
TB Parrilla Mulcher for tractor description:
The TB PARRILLA mulcher for tractor is specially designed to shred all types of crops, grass, low scrub and branches of up to 10cm in diameter. Its hydraulic rear hood offers a large range of possibilities. Low power absorption. Very solid and sturdily built. Uniform shredding.
TB Parrilla Mulcher for tractor features:
- SWING HAMMER ROTOR WITH SPECIAL DISTRIBUTION AND LOW POWER ABSORPTION
- ROTOR Ø 500 mm.
- ROTOR TUBE 220X10 mm.
- AXLE DIAMETER Ø 60 mm.
- TWIN CHASSIS
- STEEL BEARING SHELLS
- ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
- V-BELT WITH KEVLAR FIBRE
- FLOATING WORK SYSTEM
- HAMMERS WITH LOW POWER ABSORPTION
- HAMMER SCREWS MADE OF 12.9 STEEL
- RETAINER SPIKES INCLUDED
- TRANSMISSION INCLUDED
TB Parrilla Mulcher for tractor models:
Working width | Overall width | Weight Kg. | Hammers | Belts | HP (indicative) | R.P.M. | Shaft |
---|---|---|---|---|---|---|---|
900 | 1080 | 555 | 8 | 2 | 30-50 | 540-1000 | 1″ 3/8 Z-6 |
1100 | 1280 | 645 | 12 | 3 | 40-60 | 540-1000 | 1″ 3/8 Z-6 |
1400 | 1580 | 790 | 12 | 3 | 40-60 | 540-1000 | 1″ 3/8 Z-6 |
1600 | 1780 | 880 | 16 | 4 | 50-70 | 540-1000 | 1″ 3/8 Z-6 |
1800 | 1980 | 935 | 16 | 4 | 60-80 | 540-1000 | 1″ 3/8 Z-6 |
2000 | 2180 | 995 | 20 | 4 | 70-90 | 540-1000 | 1″ 3/8 Z-6 |
2200 | 2380 | 1055 | 20 | 4 | 80-100 | 540-1000 | 1″ 3/8 Z-6 |
2300 | 2480 | 1110 | 24 | 4 | 80-100 | 540-1000 | 1″ 3/8 Z-6 |
TB Parrilla Mulcher for tractor accesories:
![](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/RULO-TRASERO.png)
Rear roller
![](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/RASCADOR-RULO.png)
Rear roller scraper
![](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/DESPLAZAMIENTO-HIDRAULICO.png)
Hydraulic movement
![](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/GRUPO-CON-RUEDA-LIBRE.png)
Plus group with free wheel
![](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/CADENAS-DELANTERAS.png)
Front chain set
![](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/TRANSMISION-CON-RUEDA-LIBRE.png)
Plus free wheel transmission
![](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/GUARDAPOLVOS-ALAMBRES.png)
Dust-guard set for wires
![](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/VALVULA-OVERCENTER-COMPUERTA.png)

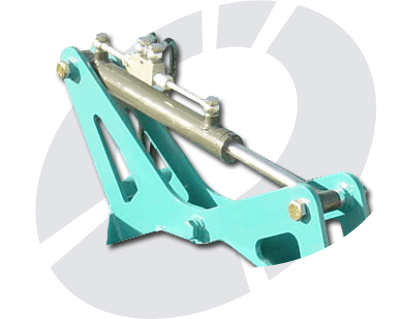

Hinged hood overcenter valves
![](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/TERCER-PUNTO-HIDRAULICO.png)

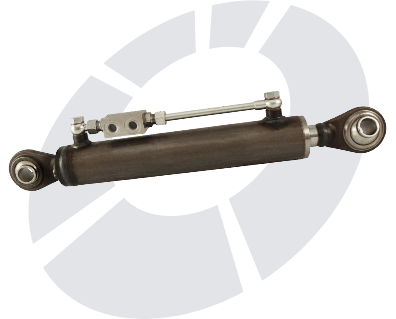

Third hydraulic point
Working width | A mm. | B mm. |
---|---|---|
1600 | 580 | 1050 |
1800 | 780 | 1250 |
2000 | 980 | 1450 |
2200 | 1180 | 1650 |
2300 | 1280 | 1750 |
