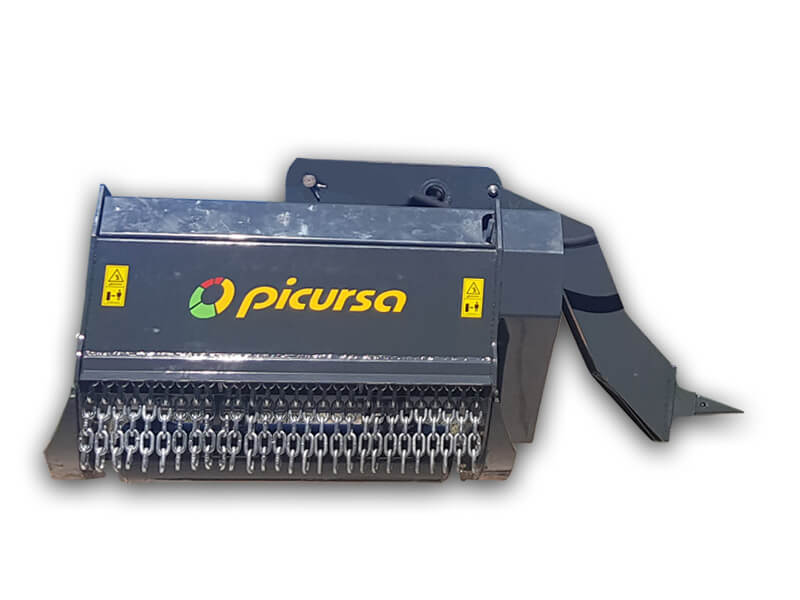

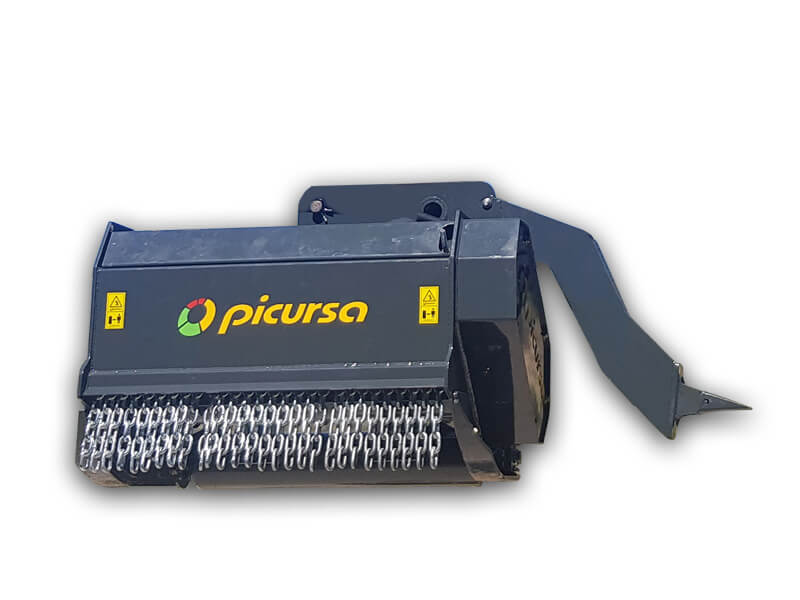

TB-RETRO boom mounted mulcher for excavator or backhoe

The TB-RETRO boom mounted mulcher for excavator is specially designed to shred pruned branches, small trees and debris from tree-felling and scrub clearance.

See all features

Features:

Robustness

Innovation

Flexibility

Durability

Request a quote

SKU: 321 Categories: Arm shredders, Public works shredders

TB-RETRO boom mounted mulcher for excavator or backhoe description:

The TB-RETRO boom mounted mulcher for excavator is specially designed to shred pruned branches, small trees and debris from tree-felling and scrub clearance. Its design enables it to be mounted onto any model of excavator or backhoe and comes with a hydraulic motor that depends on the litres of oilflow and pressure of each machine. It is equipped with a rotor with 220mm diameter hammers. The special positioning of the hammers on the rotor produces very fine shredding and the shredded material is evenly spread over the terrain. Skid runners for height adjustment. Manually controlled hinged hood. Very solid and sturdily built.

TB-RETRO boom mounted mulcher for excavator or backhoe features:

SWINGING HAMMER ROTOR, LOW POWER ABSORPTION
ROTOR Ø 500 mm.
ROTOR TUBE 220 X 10 mm.
AXLE DIAMETER Ø 60 mm.
METAL CHASSIS WITH HIGH ELASTIC LIMIT
STEEL BEARING SHELLS
ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
V-BELT WITH KEVLAR FIBRE
REAR ROLLER
HAMMERS WITH LOW POWER ABSORPTION
HAMMER SCREWS MADE OF 12.9 STEEL
FRONT GUARD
GEARED MOTOR GROUP III Pmax=250 bar
BY-PASS SYSTEM INCLUDED
HOSES UP TO HAMMER INSTALLATION

TB-RETRO boom mounted mulcher for excavator or backhoe models:

MODEL TB-RETRO
Working width	Weight excavadora	Liters	Overall width	Weight Kg.	Hammers	Belts
800	8-12 Tn.	50-120	1100	510	16	3
1000	8-12 Tn.	50-120	1300	600	18	3
1200	10-14 Tn.	60-120	1500	690	22	3
1500	10-14 Tn.	60-120	1800	830	28	3
1800	10-14 Tn.	70-120	2100	970	34	4
2000	10-14 Tn.	70-120	2300	1060	36	4
