UF-6 PORTON Mulcher

The UF-6/POR mulcher is specially designed to shred all types of crops, grass, low scrub and branches of up to 15 cm in diameter, and for scrubland clearance.

See all features

Features:

Robustness

Innovation

Flexibility

Durability

Request a quote

SKU: 291 Category: Agricultural shredders

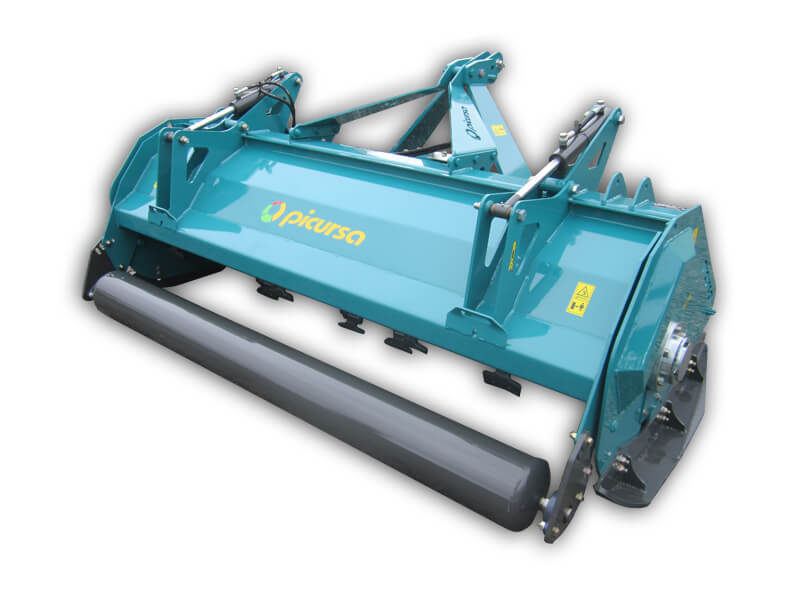

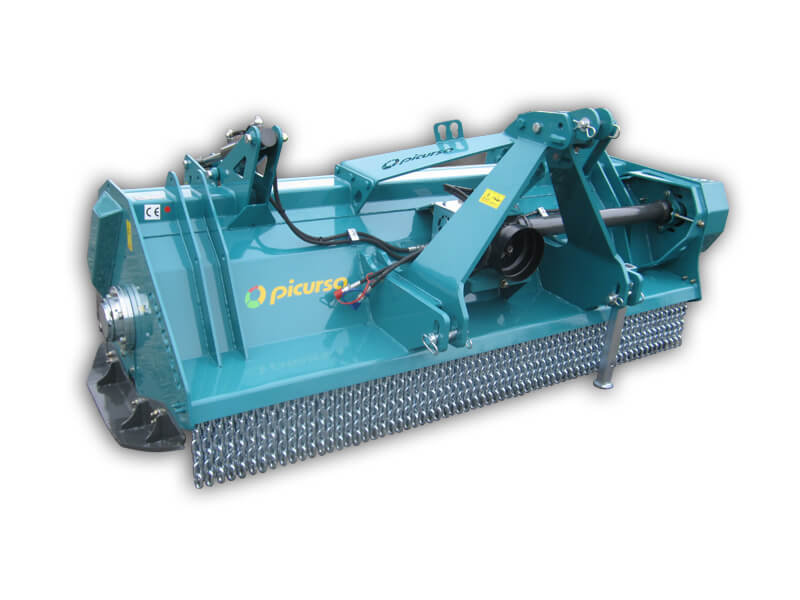

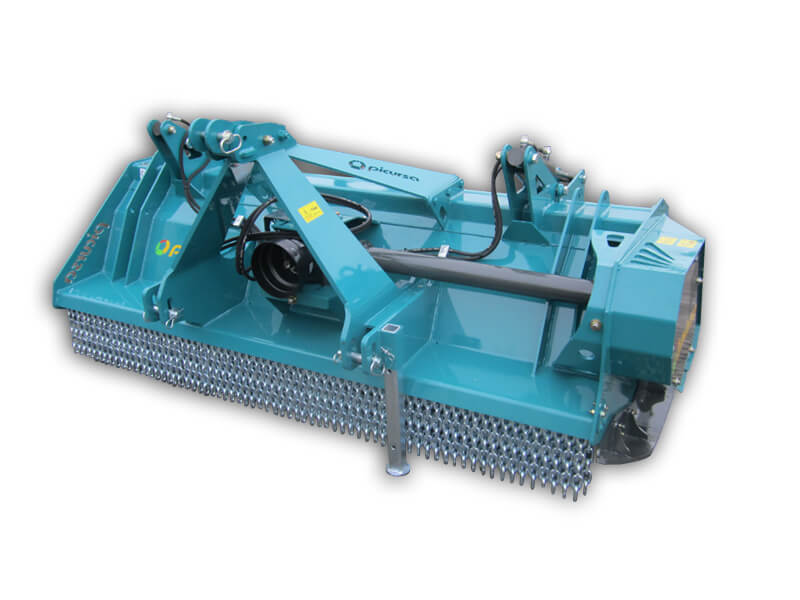

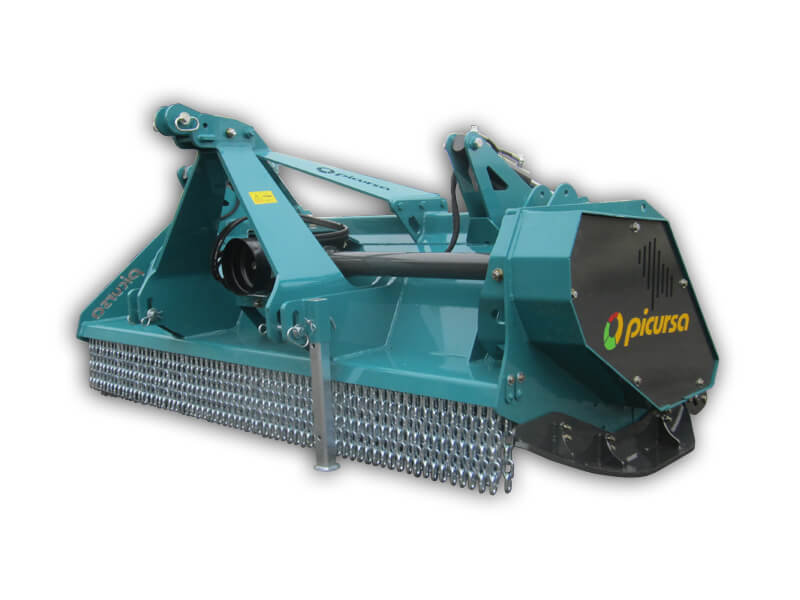

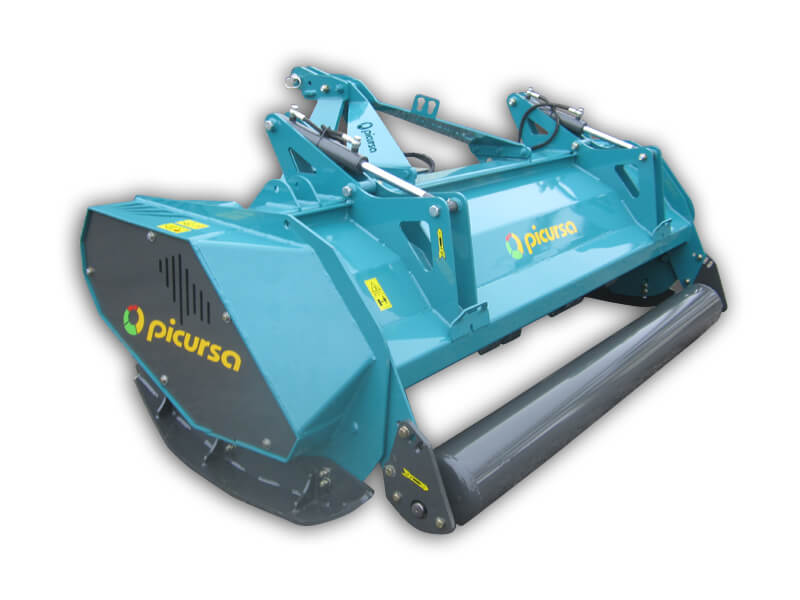

UF-6 PORTON Mulcher description:

The UF-6/POR mulcher is specially designed to shred all types of crops, grass, low scrub and branches of up to 15 cm in diameter, and for scrubland clearance. Rear hydraulic hood. This model is ideal for the most demanding farmers with large acreages, as its 400mm diameter rotor and six rows of hammers achieves a very professional result in a short time. Low power absorption. Skid runners for height adjustment. Very solid and sturdily built. Uniform shredding.

UF-6 PORTON Mulcher features:

SWING HAMMER ROTOR WITH SPECIAL DISTRIBUTION AND LOW POWER ABSORPTION
6 ROWS OF HAMMERS
ROTOR Ø 680 mm.
ROTOR TUBE 400X10 mm.
AXLE DIAMETER Ø 75 mm.
TWIN CHASSIS
STEEL BEARING SHELLS
ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
V-BELT WITH KEVLAR FIBRE
FLOATING WORK SYSTEM
HAMMERS WITH LOW POWER ABSORPTION
HAMMER SCREWS MADE OF 12.9 STEEL
FRONT CHAIN SET INCLUDED
RETAINER SPIKES INCLUDED
GROUP WITH FREE WHEEL
TRANSMISSION INCLUDED

UF-6 PORTON Mulcher models:

MODEL UF-6 PORTON
Working width	Total width	Weight Kg.	Hammers	Belts	HP (indicative)	R.P.M.	Shaft
1600	1880	1080	16	4	110-150	1000	1″ 3/4 Z-6
1800	2080	1230	20	4	120-160	1000	1″ 3/4 Z-6
2000	2280	1380	24	4	130-170	1000	1″ 3/4 Z-6
2200	2480	1530	24	5	140-180	1000	1″ 3/4 Z-6
2300	2580	1600	24	5	140-190	1000	1″ 3/4 Z-6
2400	2680	1680	24	5	150-190	1000	1″ 3/4 Z-6
