Variun PRO mulcher
The VARIUN-PRO is a multi-purpose mulcher that can operate either centred and coupled to the rear of a tractor or in offset mode and turning to adapt perfectly to irrigation systems and slopes.
Features:
Robustness
Innovation
Flexibility
Durability
Variun PRO mulcher description:
The VARIUN-PRO is a multi-purpose mulcher that can operate either centred and coupled to the rear of a tractor or in offset mode and turning to adapt perfectly to irrigation systems and slopes. It is specially designed for tractors from 90 to 140 HP to shred all kinds of grass, maize stalks, low scrub and brush. Low power absorption. Rear hood for easy exit of shredded material. Roller for height adjustment. Very solid and sturdily built. Uniform shredding.
Variun PRO mulcher features:
- SWINGING HAMMER ROTOR, LOW POWER ABSORPTION
- ROTOR Ø 460 mm.
- ROTOR TUBE 160 X 15 mm.
- AXLE DIAMETER Ø 50 mm.
- TWIN CHASSIS
- STEEL BEARING SHELLS
- ROTOR BEARING WITH DOUBLE ROW OF ROLLERS
- V-BELT WITH KEVLAR FIBRE
- HEIGHT ADJUSTMENT ROLLER
- CONICAL ROLLER BEARINGS AT ARTICULATED PARTS
- HAMMERS WITH CUTTING EDGE IDEAL FOR GRASS
- REAR DOOR FOR QUICK MATERIAL RELEASE
- FREE WHEEL CONSTANT-VELOCITY TRANSMISSION INCLUDED
CHARACTERISTIC TO CHOOSE
Variun PRO mulcher models:
| Working width | Overall width | Weight Kg. | Hammers | Belts | HP (indicative) | R.P.M. | Shaft |
|---|---|---|---|---|---|---|---|
| 1600 | 1800 | 975 | 30 | 5 | 80-90 | 540 | 1″ 3/8 Z-6 |
| 1800 | 2000 | 1050 | 34 | 5 | 90-100 | 540 | 1″ 3/8 Z-6 |
| 2000 | 2200 | 1125 | 38 | 5 | 90-110 | 540 | 1″ 3/8 Z-6 |
| 2200 | 2400 | 1200 | 44 | 5 | 110-140 | 540 | 1″ 3/8 Z-6 |
Variun PRO mulcher accesories:
Front chain set
Plus double constant-velocity transmission
Counterweight
Plus group with free wheel (Only with unit on interior)

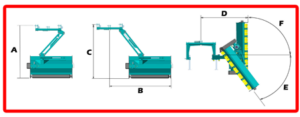

| Working width | A mm. | B mm. | C mm. | D mm. | E | F |
|---|---|---|---|---|---|---|
| 1600 | 2450 | 2500 | 2700 | 1800 | -54º | 90º |
| 1800 | 2450 | 2700 | 2700 | 1800 | -54º | 90º |
| 2000 | 2450 | 2900 | 2700 | 1800 | -54º | 90º |
| 2200 | 2450 | 3100 | 2700 | 1800 | -54º | 90º |
