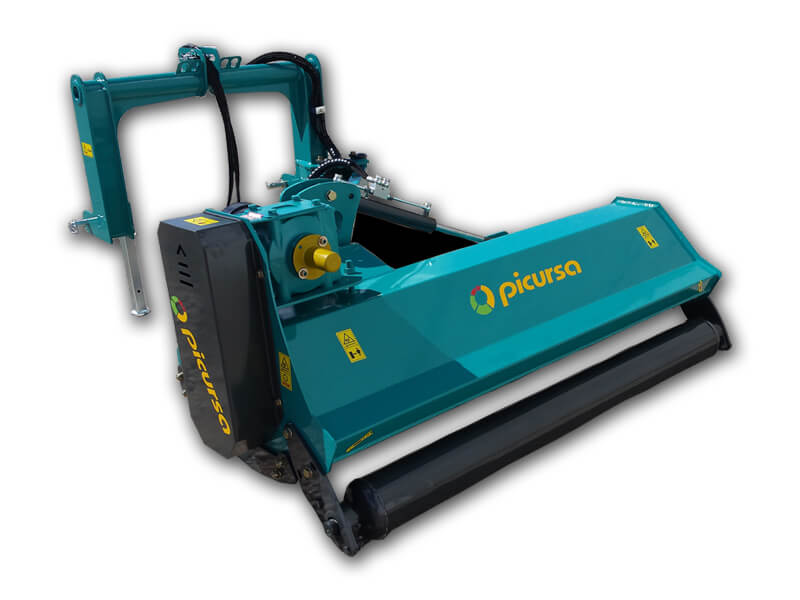

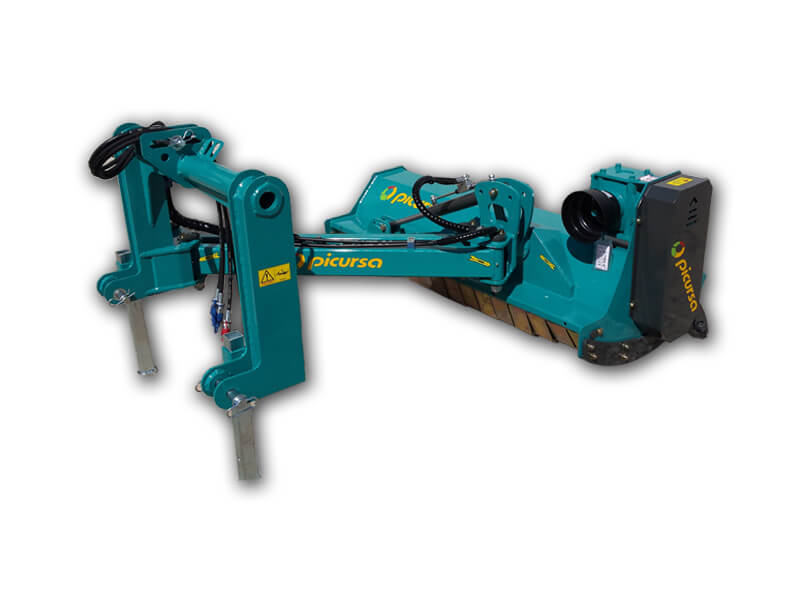

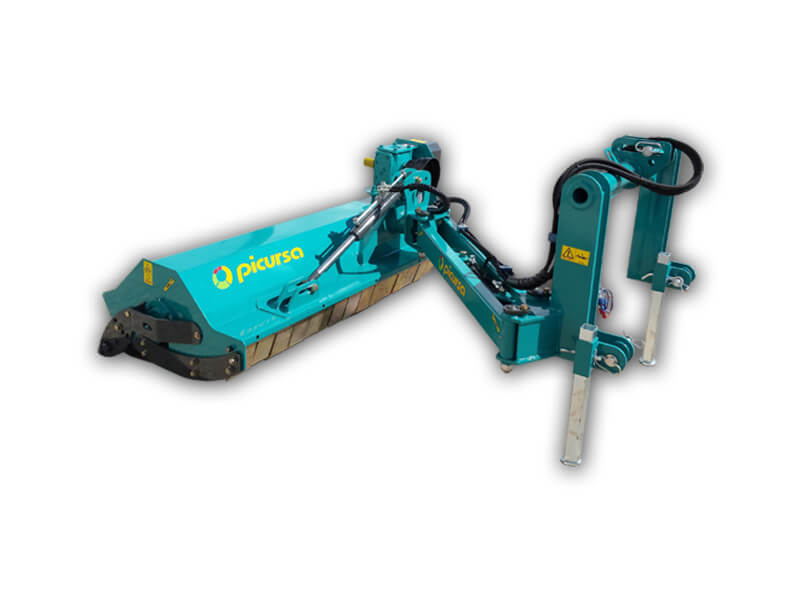

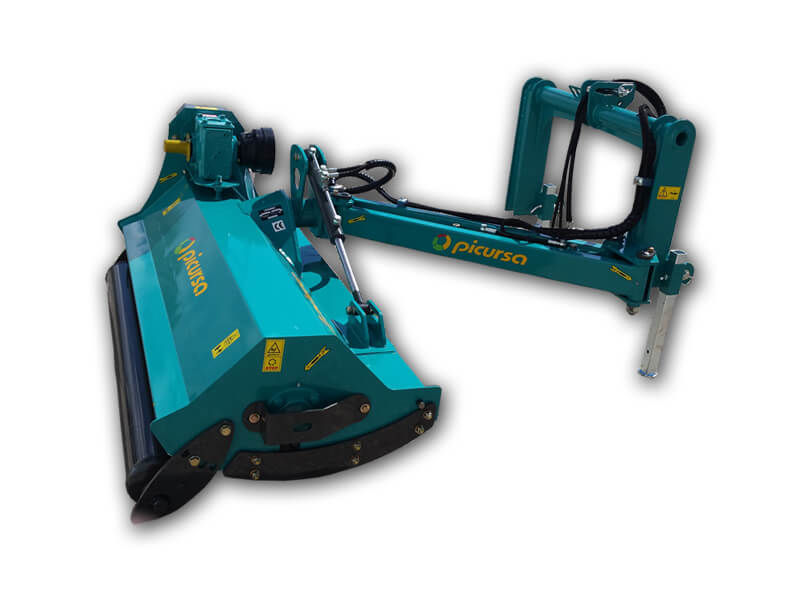

Variun Universal mulcher
The VARIUN UNIVERSAL is a multi-purpose mulcher that can operate either centred and coupled to the rear of a tractor or in offset mode and turning to adapt perfectly to irrigation systems and slopes.
Features:
Robustness
Innovation
Flexibility
Durability
Variun Universal mulcher description:
The VARIUN UNIVERSAL is a multi-purpose mulcher that can operate either centred and coupled to the rear of a tractor or in offset mode and turning to adapt perfectly to irrigation systems and slopes. It is specially designed for tractors from 50 to 90 HP to shred all kinds of grass, maize stalks, low scrub and brush. Low power absorption. Roller for height adjustment. Solid and sturdily built. Uniform shredding.
Variun Universal mulcher features:
- SWINGING HAMMER ROTOR, LOW POWER ABSORPTION
- ROTOR Ø 400 mm.
- ROTOR TUBE 125 X 10 mm.
- AXLE DIAMETER Ø 50 mm.
- TWIN CHASSIS
- STEEL BEARING SHELLS
- ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
- V-BELT WITH KEVLAR FIBRE
- HEIGHT ADJUSTMENT ROLLER
- SELF LUBRICATING BUSHINGS ON THE ARMS
- HAMMERS WITH CUTTING EDGE IDEAL FOR GRASS
- FREE WHEEL TRANSMISSION INCLUDED
CHARACTERISTIC TO CHOOSE
Variun Universal mulcher models:
| Working width | Overall width | Weight Kg. | Hammers | Belts | HP (indicative) | R.P.M. | Shaft |
|---|---|---|---|---|---|---|---|
| 1200 | 1400 | 590 | 18 | 4 | 50-70 | 540 | 1″ 3/8 Z-6 |
| 1400 | 1600 | 650 | 18 | 4 | 50-70 | 540 | 1″ 3/8 Z-6 |
| 1600 | 1800 | 690 | 22 | 4 | 60-80 | 540 | 1″ 3/8 Z-6 |
| 1800 | 2000 | 735 | 24 | 4 | 70-90 | 540 | 1″ 3/8 Z-6 |
Variun Universal mulcher accesories:
Front chain set

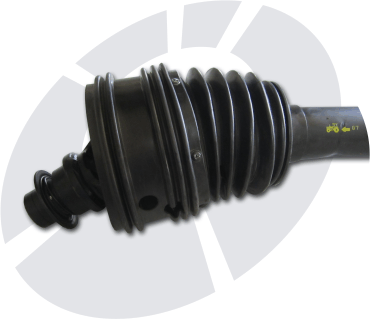

Plus constant-velocity transmission

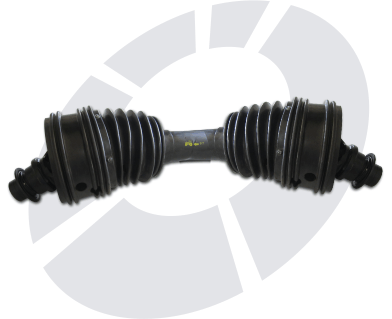

Plus double constant-velocity transmission
Counterweight
Plus group with free wheel (Only with unit on interior)
| Working width | A mm. | B mm. | C mm. | D mm. | E | F |
|---|---|---|---|---|---|---|
| 1400 | 2290 | 2270 | 2325 | 1765 | -56º | 90º |
| 1600 | 2290 | 2470 | 2325 | 1765 | -56º | 90º |
| 1800 | 2290 | 2670 | 2325 | 1765 | -56º | 90º |
