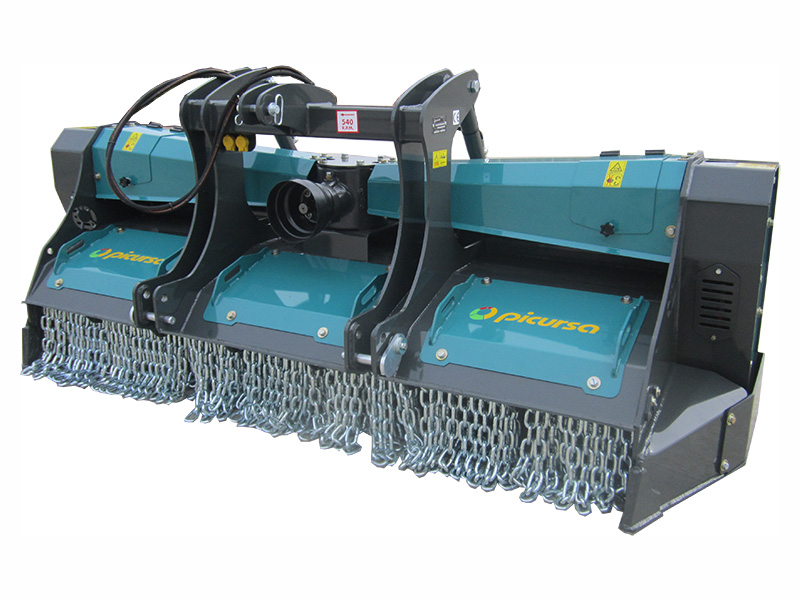

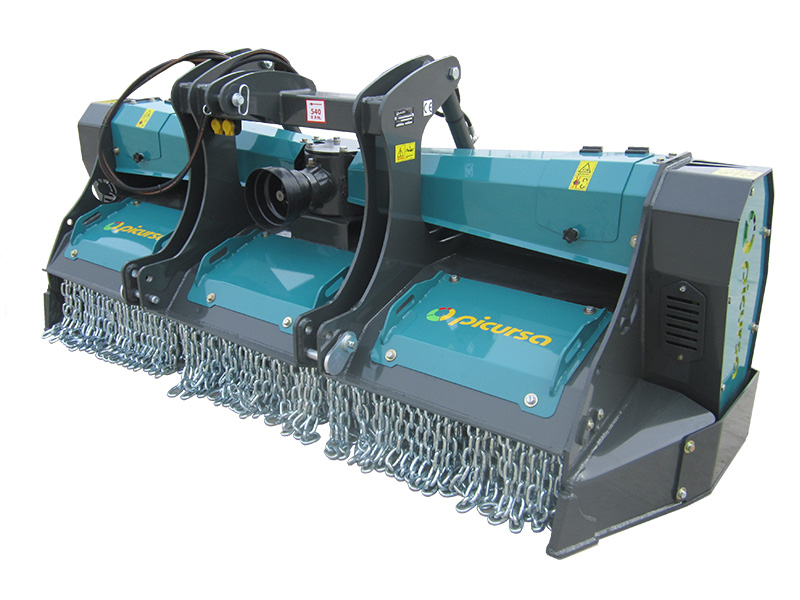

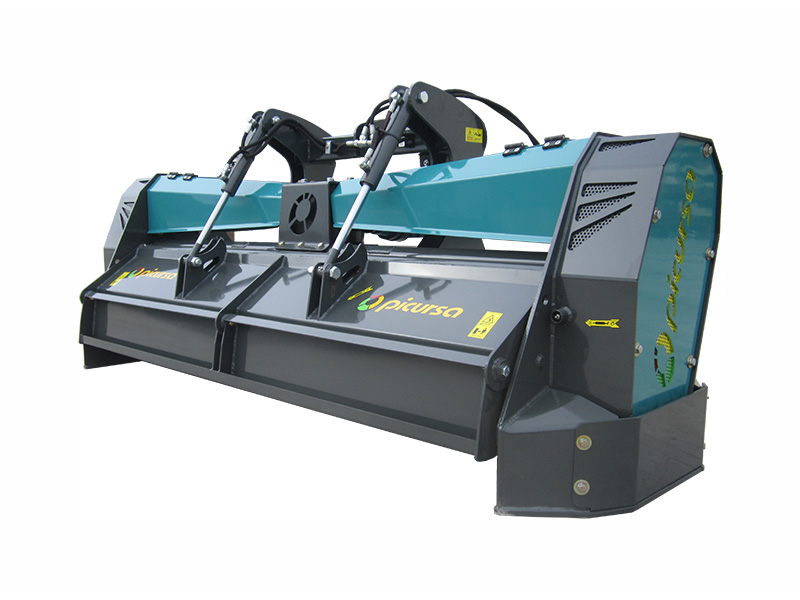

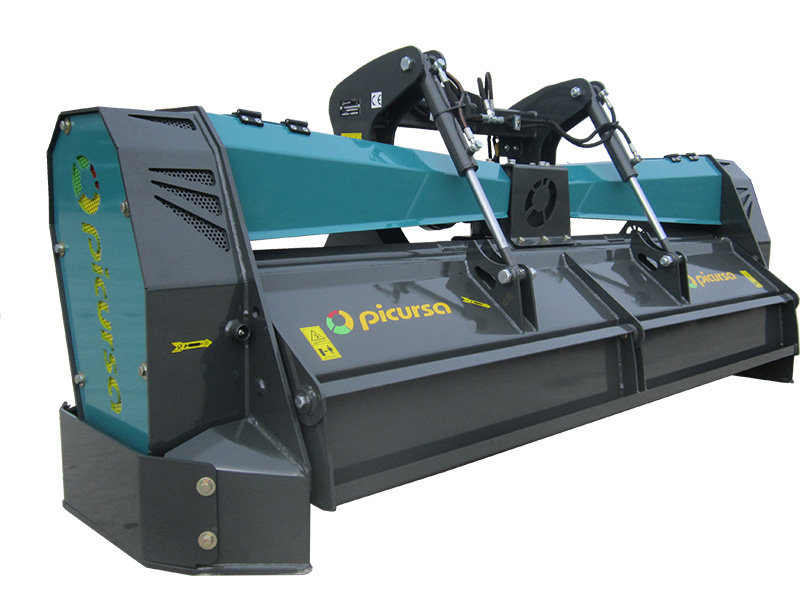

Trituradora BOXING-STONE-2EF
The BOXING-STONE stone crusher is specially designed for crushing stones on loose or previously moved ground.
Features:
Robustness
Innovation
Flexibility
Durability
Trituradora BOXING-STONE-2EF description:
The BOXING-STONE stone crusher is specially designed for crushing stones on loose or previously moved ground. The skids and the inner casing are made of interchangeable wear-resistant Hardox steel. It is equipped with special alloy hammers with hard metal tips that make them more resistant and harder-wearing. The special positioning of the hammers on the rotor produces very fine shredding and the shredded material is evenly spread over the terrain. Hydraulic controlled hinged hood. Very solid and sturdily built.
Trituradora BOXING-STONE-2EF features:
- FIXED HAMMER ROTOR WITH SPIRAL DISTRIBUTION, LOW POWER ABSORPTION
- ROTOR Ø 440 mm.
- ROTOR TUBE 200 X 20 mm.
- AXLE DIAMETER Ø 75 mm.
- INTERCHANGEABLE TWIN CHASSIS MADE OF ANTI-WEAR MATERIAL
- METAL CHASSIS WITH HIGH ELASTIC LIMIT
- HAMMER BRACKET MADE OF ANTI WEAR MATERIAL
- STEEL BEARING SHELLS
- ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
- HYDRAULIC CYLINDRES IN THE GATE INCLUDED
- DOUBLE ROW OF FRONT GUARD CHAINS
- TRANSMISSION INCLUDED
Trituradora BOXING-STONE-2EF models:
| Working width | Total width | Weight Kg. | Hammers | V-Belts | HP (indicative) | R.P.M. | Shaft |
|---|---|---|---|---|---|---|---|
| 2000 | 2520 | 1750 | 40 | 8-XPB | 140-250 | 1000 | 1″ 3/4 Z-6 |
| 2200 | 2720 | 1880 | 44 | 8-XPB | 160-250 | 1000 | 1″ 3/4 Z-6 |
Trituradora BOXING-STONE-2EF accesories:
Plus transmission with automatic clutch
Third hydraulic point REF.
