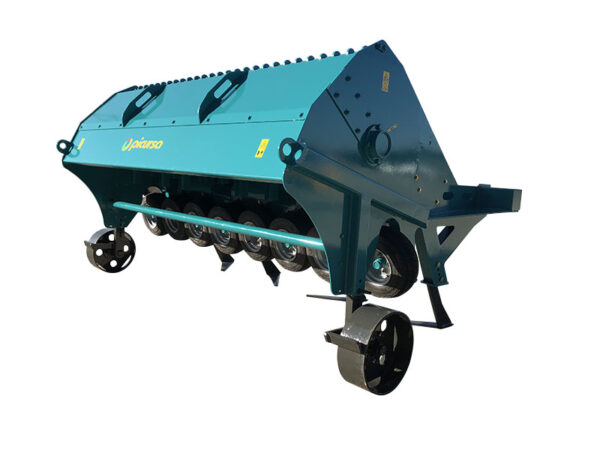

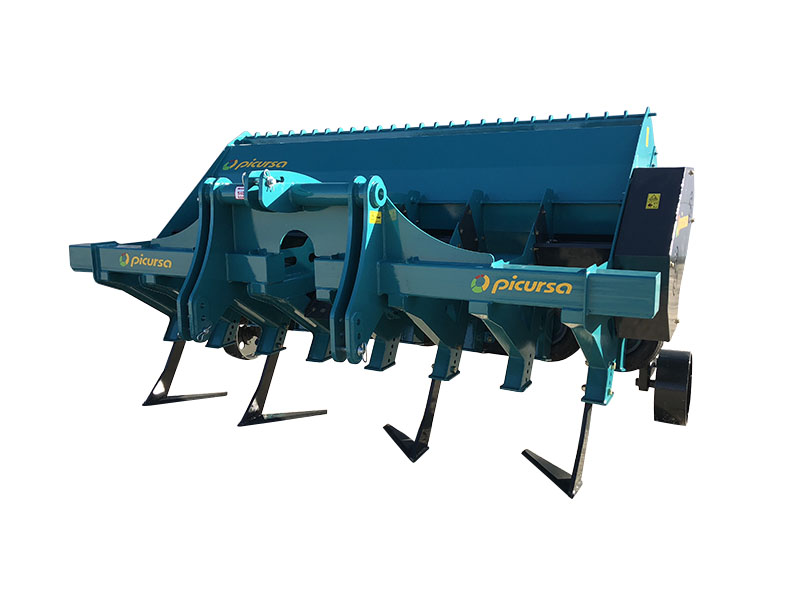

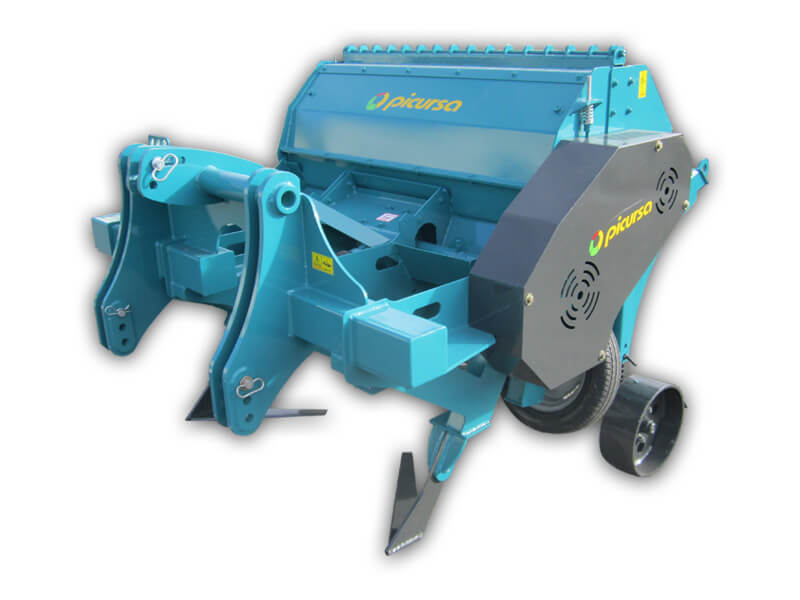

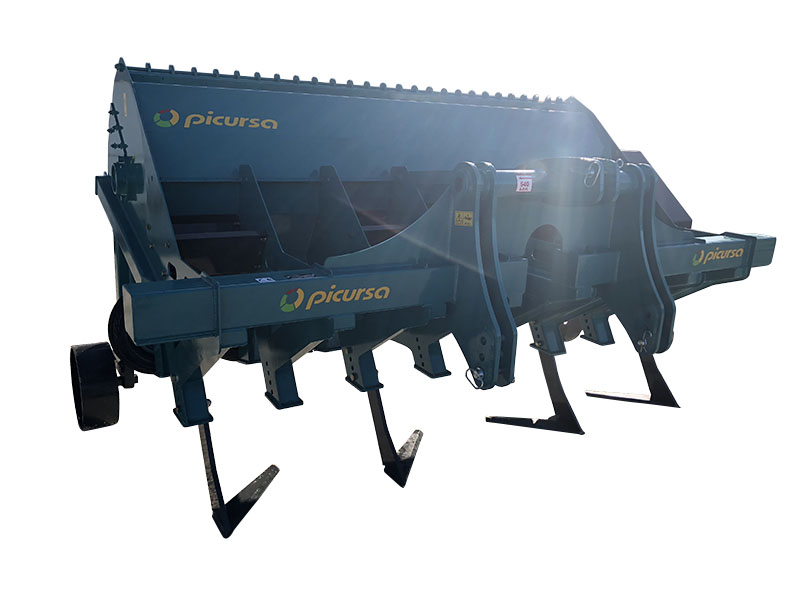

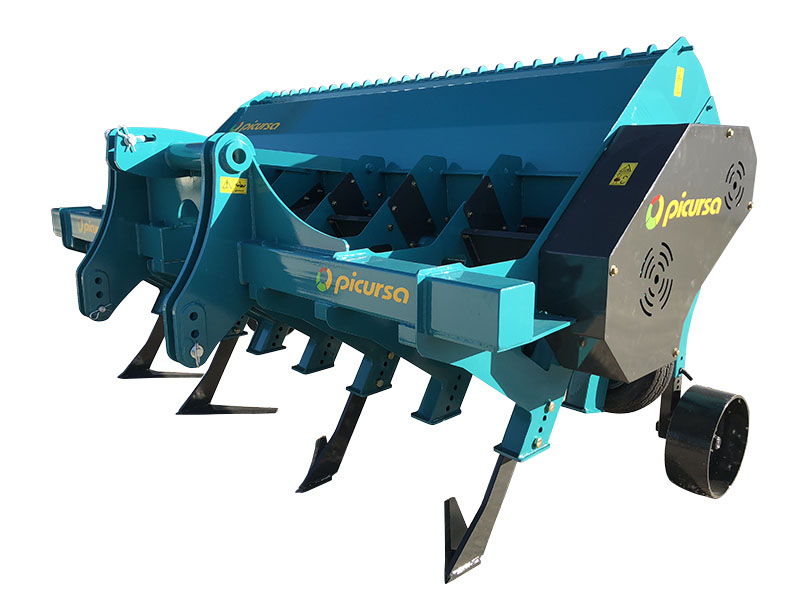

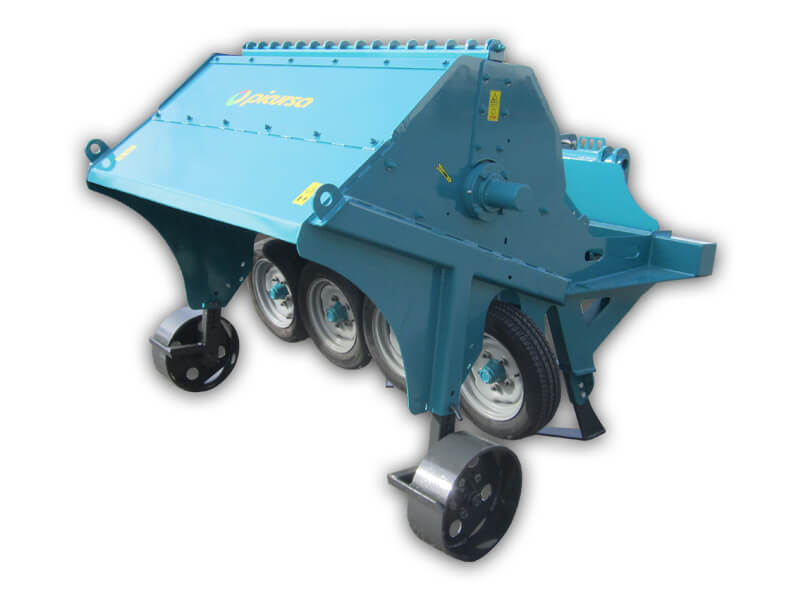

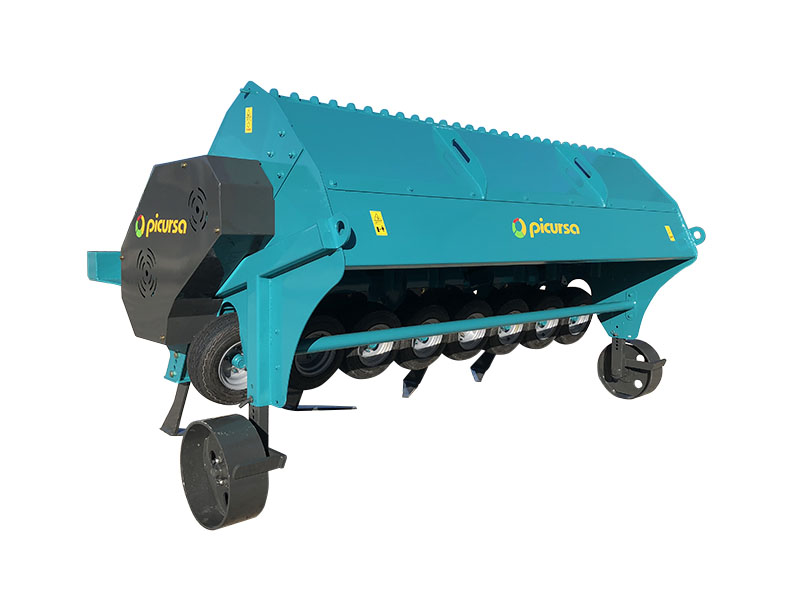

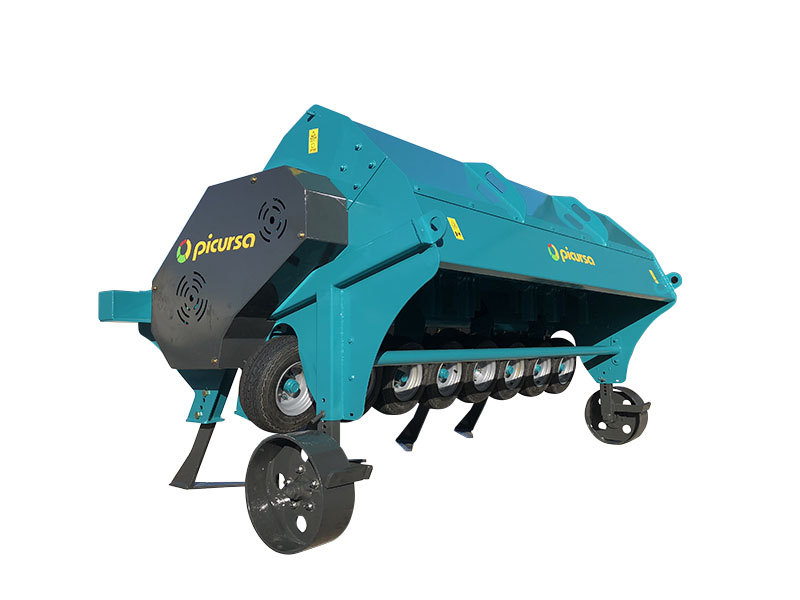

Trituradora COTTON-CRUSH

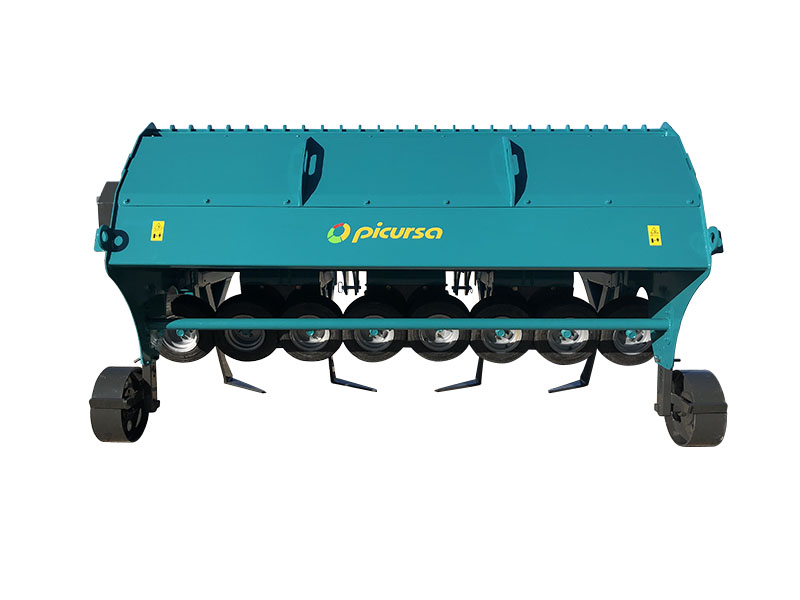

The Picursa cotton plant stripper-crusher is especially designed for performing the functions of stripping of the cotton plant from the land and crushing it in a single pass.
Features:
![Cuchilla PIC-8 Cuchilla PIC-8](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/Cuchilla-PIC-8.png)
Robustness
![](https://st1.picursa.com/wp-content/uploads/sites/2/2022/06/robustez.jpg)
Innovation
![](https://st1.picursa.com/wp-content/uploads/sites/2/2022/06/innovacion.jpg)
Flexibility
![](https://st1.picursa.com/wp-content/uploads/sites/2/2022/06/flexibilidad.jpg)
Durability
![](https://st1.picursa.com/wp-content/uploads/sites/2/2022/06/durabilidad.jpg)
Trituradora COTTON-CRUSH description:
The Picursa cotton plant stripper-crusher is especially designed for performing the functions of stripping of the cotton plant from the land and crushing it in a single pass. There are two versions of the machine; one is for 2 rows and the other is for 4 rows; they are also manufactured in two row widths, 75 and 90. Designed to reduce the land preparation time as much as possible. Very solid, robust construction.
Trituradora COTTON-CRUSH features:
- SWING BLADES ROTOR WITH SPECIAL DISTRIBUTION AND LOW POWER ABSORPTION
- ROTOR Ø 760 mm.
- ROTOR TUBE 220X10 mm.
- AXLE DIAMETER Ø 60 mm.
- STEEL BEARING SHELLS
- ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
- V-BELT WITH KEVLAR FIBRE
- STRAIGHT BLADES
- BLADES SCREWS MADE OF 12.9 STEEL
- FIXED WHEELS FOR HEIGHT CONTROL
- TRANSMISSION INCLUDED
Trituradora COTTON-CRUSH models:
Model | Working width | Total width | Weight Kg. | Blade | V-Belts | HP (indicative) | R.P.M. | Shaft |
---|---|---|---|---|---|---|---|---|
AT-CC-2H-750 | 1213 | 1685 | 1340 | 20 | 4 | 90-120 | 1000 | 1″ 3/8 Z-6 |
AT-CC-2H-900 | 1528 | 2000 | 1490 | 28 | 4 | 90-140 | 1000 | 1″ 3/8 Z-6 |
Model | Working width | Total width | Weight Kg. | Blade | V-Belts | HP (indicative) | R.P.M. | Shaft |
---|---|---|---|---|---|---|---|---|
AT-CC-4H-750 | 2714 | 3190 | 1950 | 56 | 5 | 120-180 | 1000 | 1″ 3/8 Z-6 |
AT-CC-4H-900 | 3238 | 3715 | 2145 | 60 | 5 | 130-200 | 1000 | 1″ 3/8 Z-6 |
Trituradora COTTON-CRUSH accesories:
![](https://st1.picursa.com/wp-content/uploads/sites/2/2023/01/TRANSMISION-CON-RUEDA-LIBRE.png)
Plus free wheel transmission
