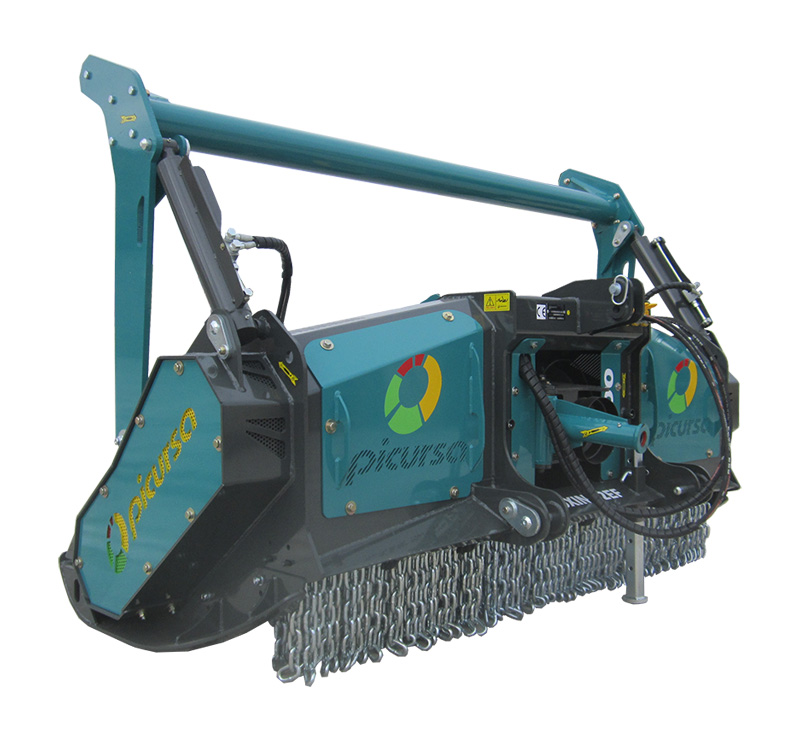

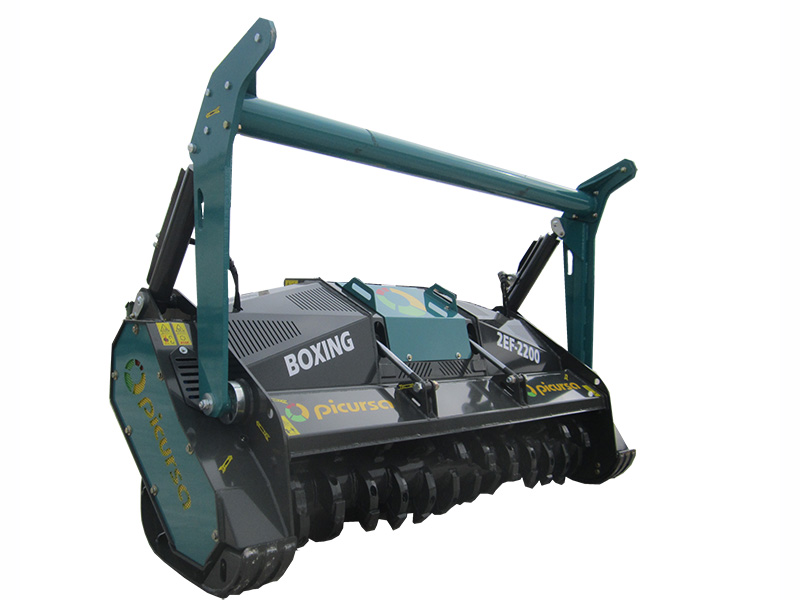

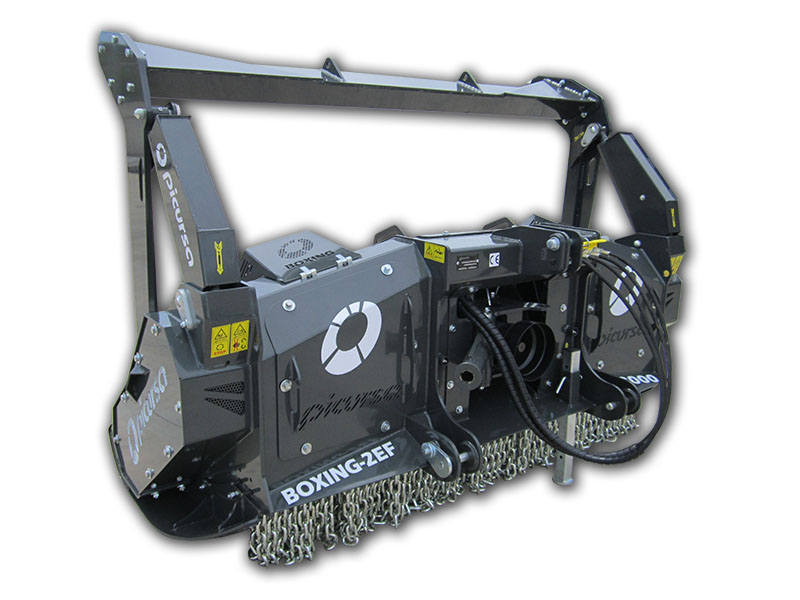

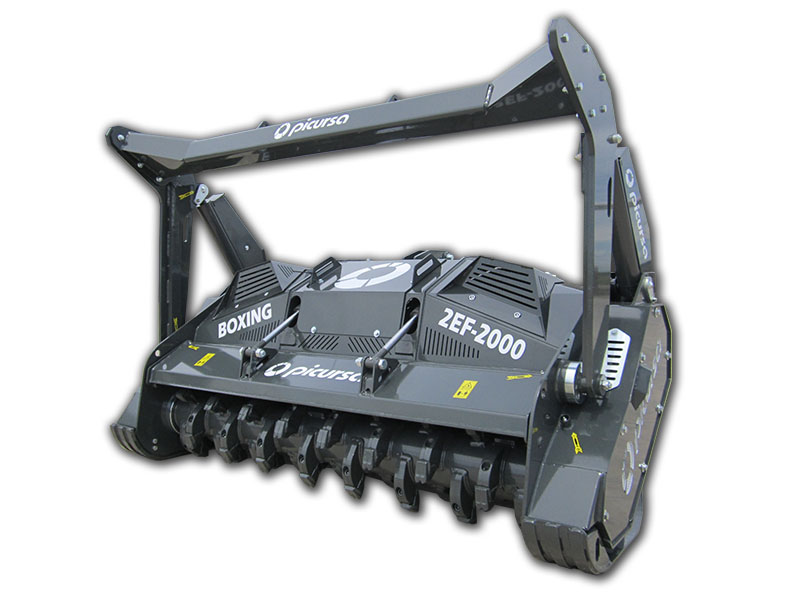

trituradora FORESTAL BOXING-2EF
The Boxing-2EF fixed hammer forest crusher is specially designed for the crushing of branch cords, low brush and farm maintenance.
Features:
Robustness
Innovation
Flexibility
Durability
trituradora FORESTAL BOXING-2EF description:
The Boxing-2EF fixed hammer forest crusher is specially designed for the crushing of branch cords, low brush and farm maintenance. This mulcher is specially designed for tractors between 100-200 HP It is equipped with special alloy hammers with hard metal tips that make them more resistant and harder-wearing. The special positioning of the hammers on the rotor produces very fine shredding and the shredded material is evenly spread over the terrain. Skid runners for height adjustment. Hydraulic controlled hinged hood. Very solid and sturdily built.
trituradora FORESTAL BOXING-2EF features:
- FIXED HAMMER ROTOR WITH SPIRAL DISTRIBUTION, LOW POWER ABSORPTION.
- ROTOR Ø 440 mm.
- ROTOR TUBE 200 X 20 mm.
- AXLE DIAMETER Ø 75 mm.
- INTERCHANGEABLE TWIN CHASSIS MADE OF ANTI-WEAR MATERIAL.
- METAL CHASSIS WITH HIGH ELASTIC LIMIT.
- HAMMER BRACKET MADE OF ANTI WEAR MATERIAL.
- STEEL BEARING SHELLS.
- ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS.
- HYDRAULIC CYLINDRES IN THE GATE INCLUDED.
- DOUBLE ROW OF FRONT GUARD CHAINS.
- TRANSMISSION INCLUDED.
trituradora FORESTAL BOXING-2EF models:
| Working width | Overall width | Weight Kg. | Hammers | Belts | HP (indicative) | R.P.M. | Shaft |
|---|---|---|---|---|---|---|---|
| 2000 | 2440 | 1790 | 40 | 8-PXB | 140-250 | 1000 | 1″ 3/4 Z-6 |
| 2200 | 2640 | 1920 | 44 | 8-XPB | 160-250 | 1000 | 1″ 3/4 Z-6 |
trituradora FORESTAL BOXING-2EF accesories:
Mechanical adjustements bars.
Hydraulic adjustements bars.
Hydraulic extender bars.
Boxing hidraulic clutches kit.
Third hydraulic point REF.
