TA-REVERSIBLE mulcher
The TA reversible mulcher for tractor is specially designed to shred all types of crops, grass, low scrub and branches of up to 12 cm. in diameter.
- Type of machinery:
Tractor 100-150cvTractor 150-200cv - Work to be carried out:
Shred sunflower stubbleShred woody grassShred corn stoverGrass shredding
Features:
Robustness
Innovation
Flexibility
Durability

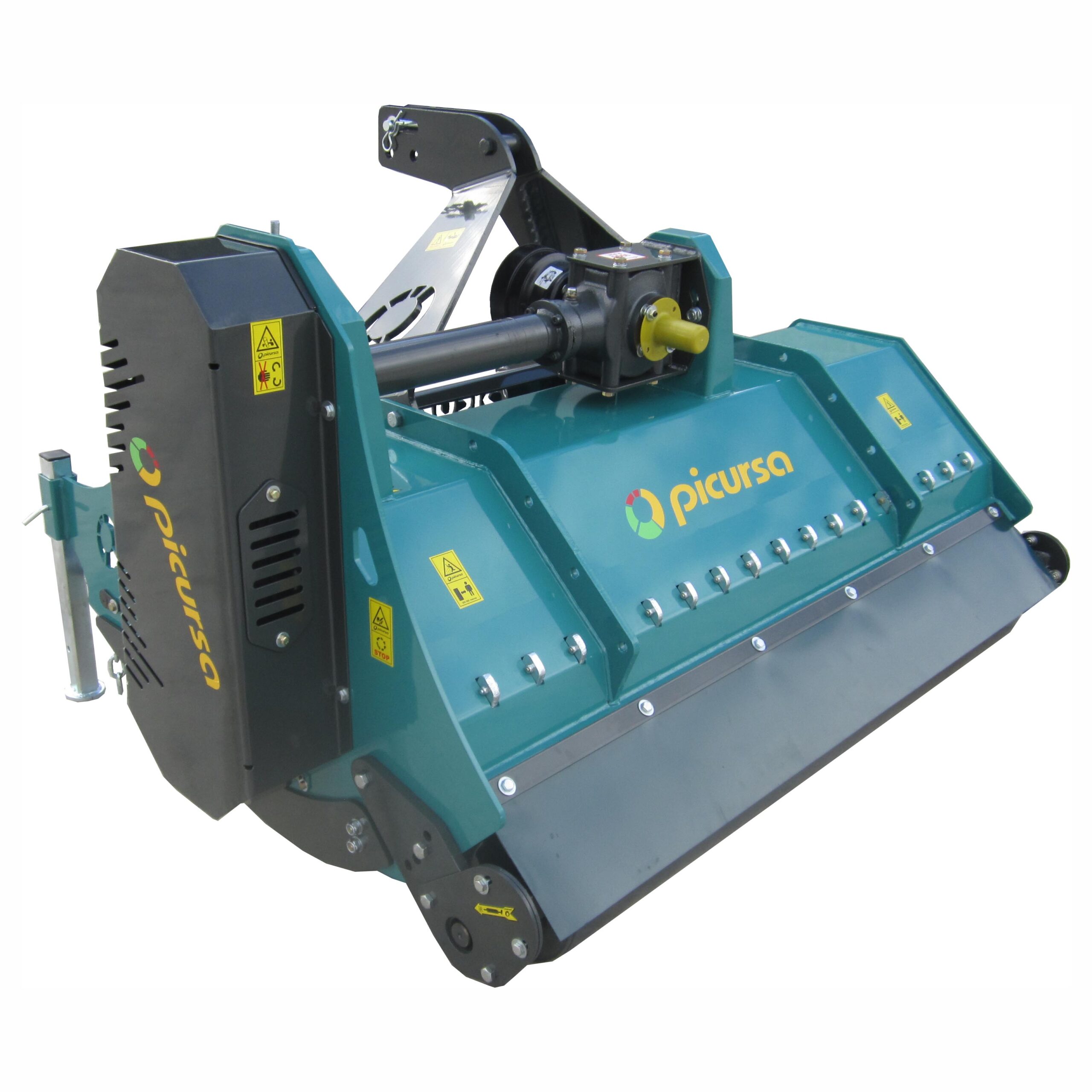

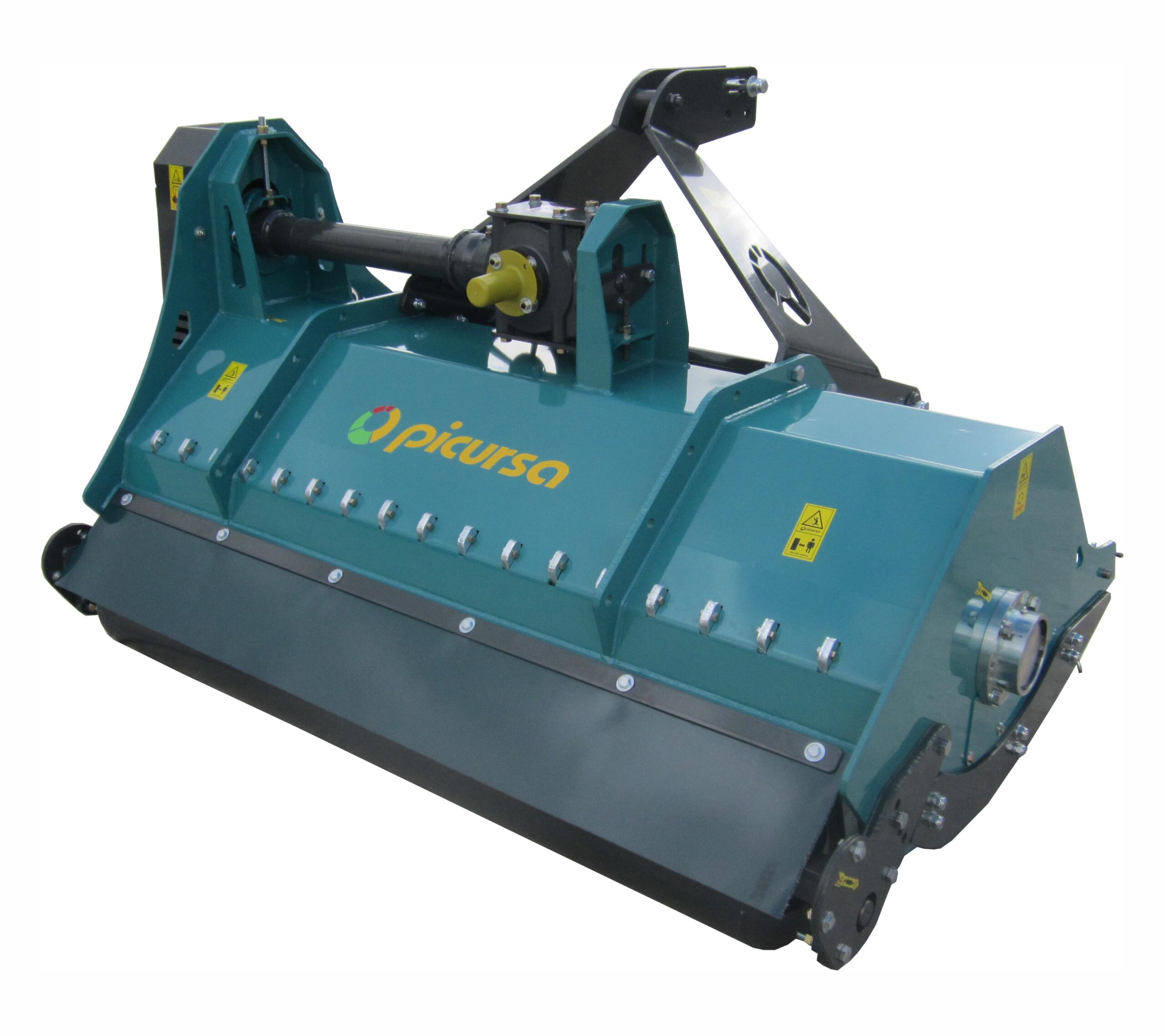

TA-REVERSIBLE mulcher description:
The TA reversible mulcher for tractor is specially designed to shred all types of crops, grass, low scrub and branches of up to 12 cm. in diameter. Low power absorption.
Rear roller for height adjustment and coupling on both sides.
TA-REVERSIBLE mulcher features:
- SWING HAMMER ROTOR WITH SPECIAL DISTRIBUTION AND LOW
POWER ABSORPTION. - ROTOR TUBE 300X10 mm.
- ROTOR Ø 600 mm.
- AXLE DIAMETER Ø 60 mm.
- TWIN CHASSIS.
- STEEL BEARING SHELLS.
- ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS.
- V-BELT WITH KEVLAR FIBRE.
- FLOATING WORK SYSTEM.
- HAMMERS WITH LOW POWER ABSORPTION.
- HAMMER SCREWS MADE OF 12.9 STEEL.
- REAR ROLLER
- TRANSMISSION INCLUDED.
TA-REVERSIBLE mulcher models:
| Working width | Total width | Weight Kg. | Hammers | Belts | HP (indicative) | R.P.M. | Shaft |
|---|---|---|---|---|---|---|---|
| 1800 | 2050 | 1080 | 16 | 4 | 80-100 | 540-1000 | 1"3/8 Z-6 |
| 2000 | 2250 | 1110 | 20 | 4 | 80-100 | 540-1000 | 1"3/8 Z-6 |
| 2300 | 2550 | 1150 | 24 | 4 | 90-110 | 1000 | 1"3/8 Z-6 |
| 2400 | 2650 | 1190 | 24 | 4 | 100-110 | 1000 | 1"3/8 Z-6 |
| 2600 | 2850 | 1295 | 24 | 4 | 100-120 | 1000 | 1"3/8 Z-6 |
| 2800 | 3050 | 1400 | 26 | 5 | 110-130 | 1000 | 1"3/8 Z-6 |
| 3000 | 3250 | 1495 | 30 | 5 | 130-150 | 1000 | 1"3/8 Z-6 |
| 3200 | 3450 | 1600 | 30 | 6 | 140-180 | 1000 | 1"3/8 Z-6 |
TA-REVERSIBLE mulcher accesories:
Dust-guard set for wires.

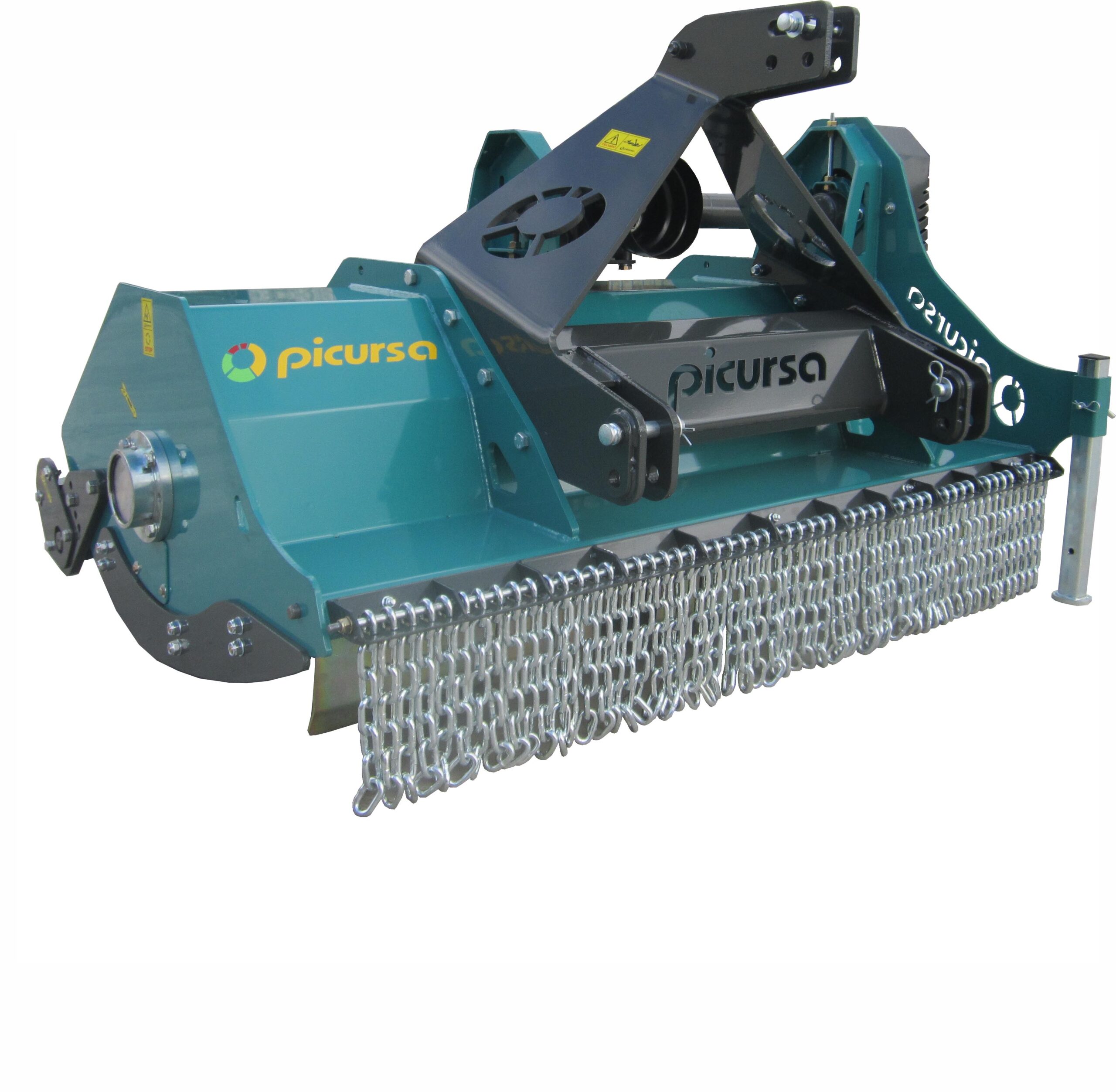

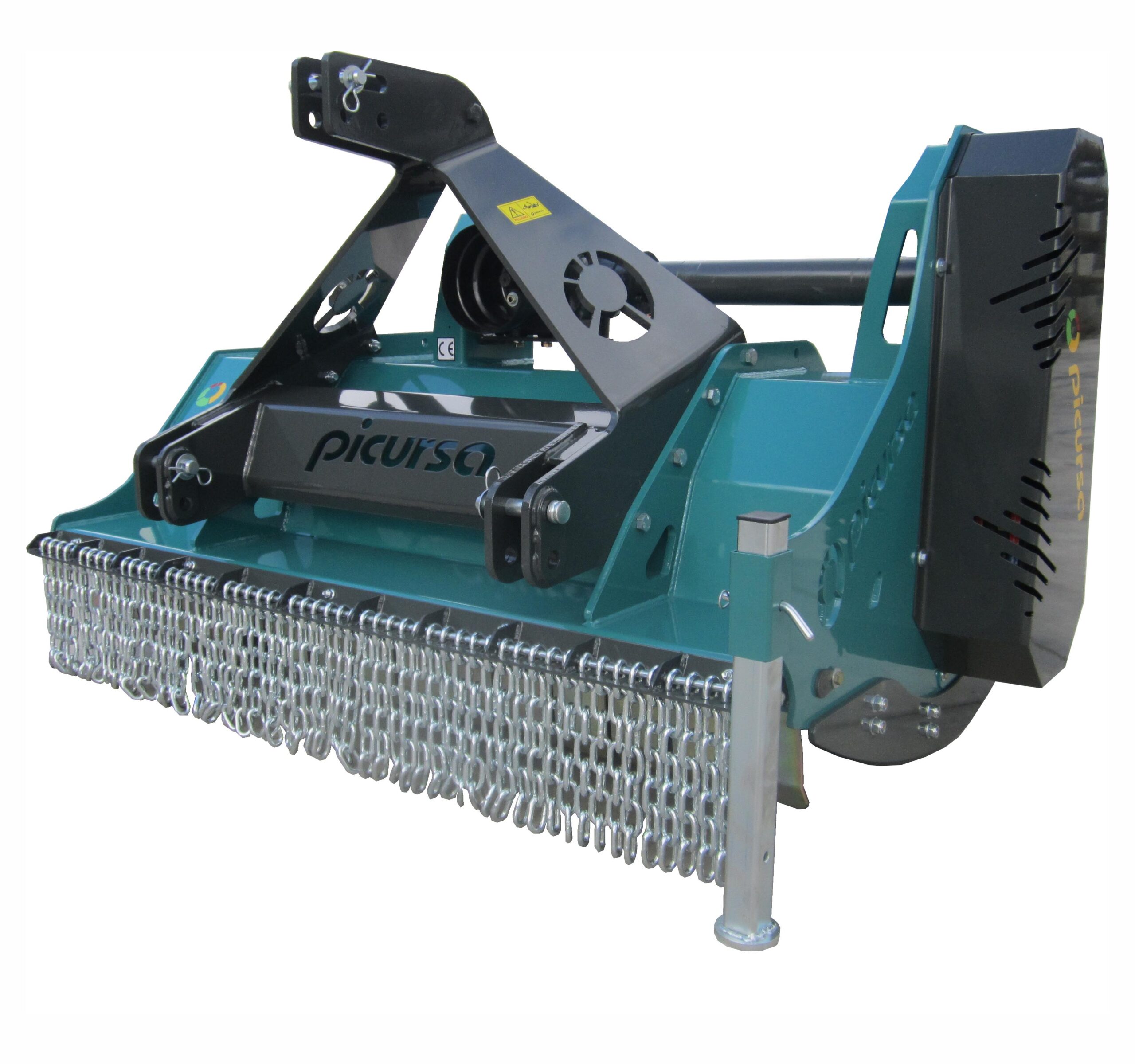

Front chain set.
Plus group with free wheel.
Double cutter.
Rear roller scraper.
Retainer spikes.

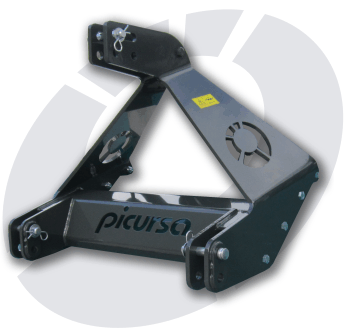

Plus group reversible.
Third hydraulic point.
