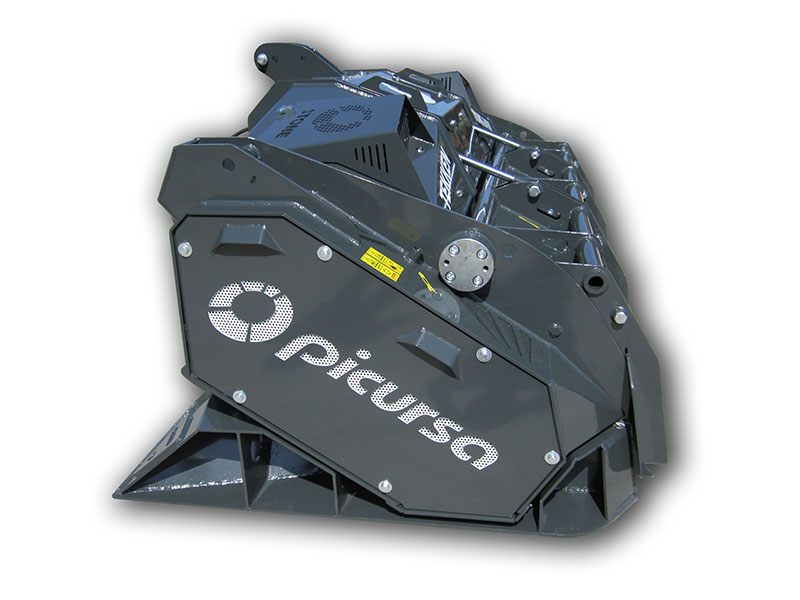

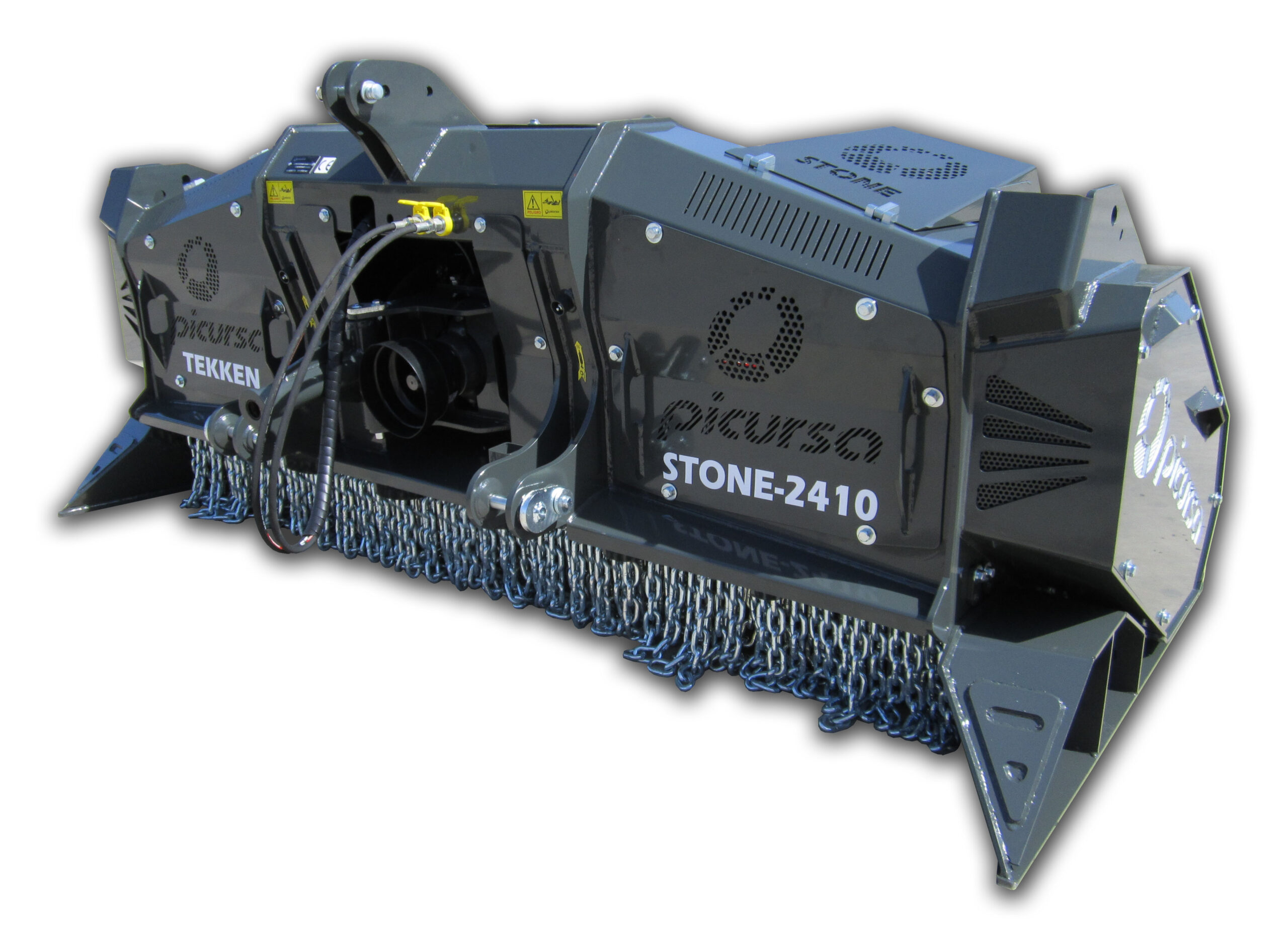

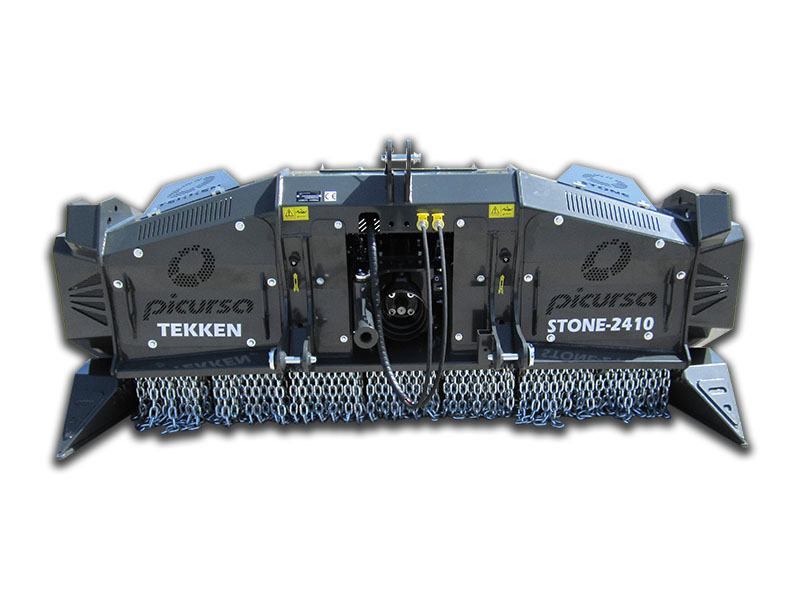

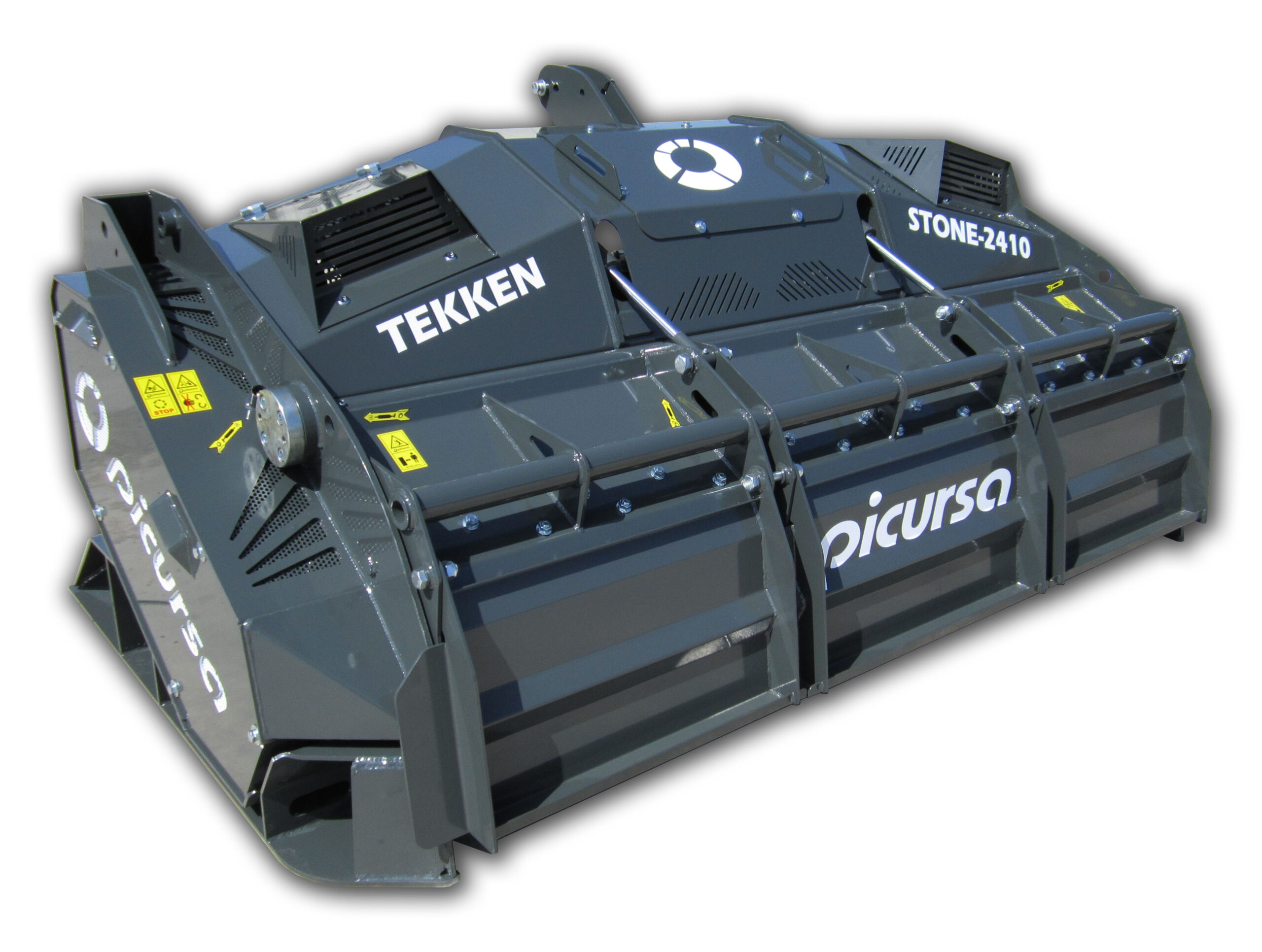

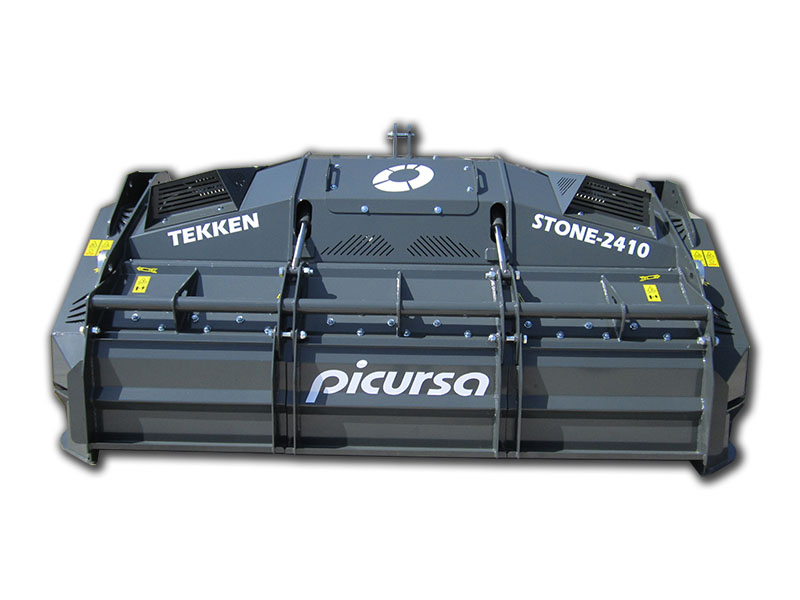

TEKKEN-STONE Crusher
The TEKKEN-STONE crusher is specially designed for crushing stones on loose or previously moved ground.
Features:
Robustness
Innovation
Flexibility
Durability
TEKKEN-STONE Crusher description:
The TEKKEN-STONE stone crusher is specially designed for crushing stones on loose or previously moved ground. The skids and the inner casing are made of interchangeable wearresistant Hardox steel. It is equipped with special alloy hammers with hard metal tips that make them more resistant and harderwearing. The special positioning of the hammers on the rotor produces very fine shredding and the shredded material is evenly
spread over the terrain. Hydraulic controlled hinged hood. Very solid and sturdily built.
TEKKEN-STONE Crusher features:
- FIXED HAMMER ROTOR WITH SPIRAL DISTRIBUTION, LOW POWER ABSORPTION
- AXLE DIAMETER Ø 100 mm.
- INTERCHANGEABLE CHOPPED ADJUSTMENT SIEVE
- INTERCHANGEABLE TWIN CHASSIS MADE OF ANTI-WEAR MATERIAL.
- ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
- METAL CHASSIS WITH HIGH ELASTIC LIMIT MATERIAL
- HAMMER SUPPORT MADE OF ANTI WEAT MATERIAL
- STEEL BEARING SHELLS
- HYDRAULIC CYLINDRES IN THE GATE INCLUDED
- DOUBLE ROW OF FRONT GUARD CHAINS
- TRANSMISSION INCLUDED
TEKKEN-STONE Crusher models:
| Working width | Total width | Weight Kg. | Hammers | V-Belts | HP (indicative) | R.P.M. | Shaft |
|---|---|---|---|---|---|---|---|
| 2000 | 2500 | 2720 | 50+4 | 8-XPC | 160-220 | 1000 | 1″ 3/4 Z-6 |
| 2200 | 2700 | 2980 | 55+4 | 8-XPC | 180-260 | 1000 | 1″ 3/4 Z-6 |
| 2410 | 2910 | 3260 | 60+4 | 8-XPBC | 200-300 | 1000 | 1″ 3/4 Z-6 |
TEKKEN-STONE Crusher accesories:
Plus transmission with automatic clutch
Third hydraulic point REF.
