Variun-fruit agricultural mulcher

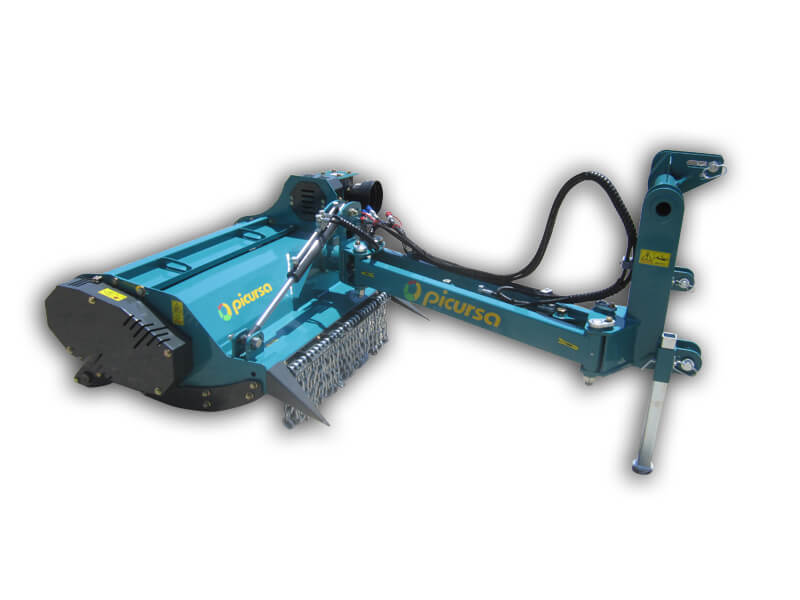

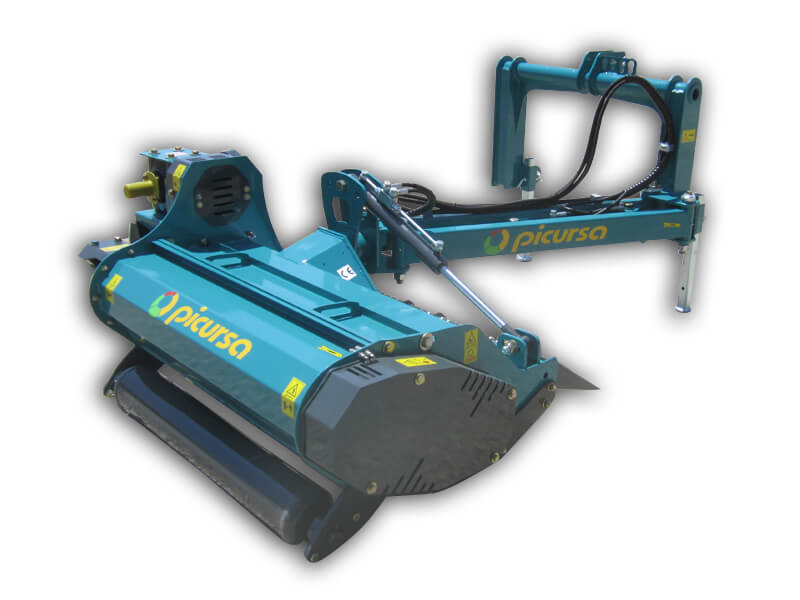

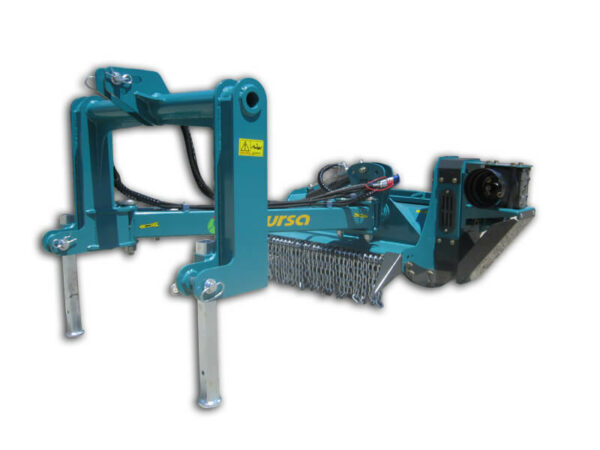

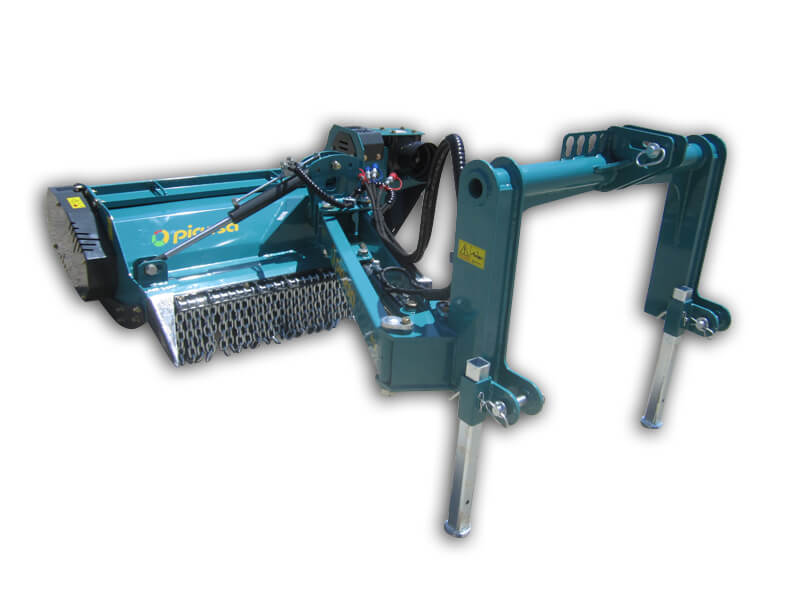

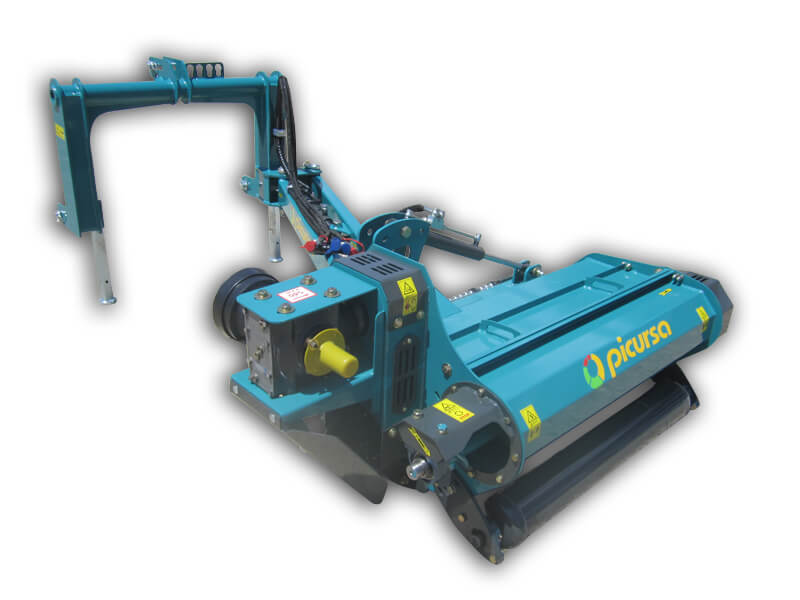

The VARIUN-FRUIT is a multi-purpose mulcher that can operate either centred and coupled to the rear of a tractor or in offset mode and turning to adapt perfectly to irrigation systems and slopes.

Robustness

Innovation

Flexibility

Durability

SKU: 294 Categories: ,

Variun-fruit agricultural mulcher description:

The VARIUN-FRUIT is a multi-purpose mulcher that can operate either centred and coupled to the rear of a tractor or in offset mode and turning to adapt perfectly to irrigation systems and slopes. It is specially designed for tractors from 50 to 90 HP to shred all kinds of grass and branch up to 6-8 cm. The novelty is that the machine incorporates a hydraulic auger whose purpose is to close off the material to one side or the other of crusher, either to maintain moisture in the root as well as to suffocate the earth so that grass does not sprout on root or else to take material out of crushed zone. This model is suitable for fruit plantations and plantation tellis like vine and olive. Besides, the model incorporates a superior gate that has two positions, the first one so the material has access to the wealth, and the second position allows the use of the machine as a normal crusher, letting the material fall directly to the ground. The Variun-Fruit model musher stands out for its performance, since it executes a good crushed with low potency absortion, and for the robustness that the Picursa brand impresses in all of their products.

Variun-fruit agricultural mulcher features:

  • SWINGING HAMMER ROTOR, LOW POWER ABSORPTION
  • ROTOR Ø 400 mm.
  • ROTOR TUBE 125X10 mm.
  • AXLE DIAMETER Ø 50 mm.
  • TWIN CHASSIS
  • STEEL BEARING SHELLS
  • ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
  • V-BELTS WITH KEVLAR FIBRE
  • HEIGHT ADJUSTMENT ROLLER
  • SELF LUBRICATING BUSHINGS ON THE ARMS
  • HAMMERS WITH CUTTING EDGE IDEAL FOR GRASS
  • MECHANICAL AUGER
  • FREE WHEEL TRANSMISSION INCLUDED

CHARACTERISTIC TO CHOOSE:

Sinfin lado derecho Sinfin lado izquierdo

Variun-fruit agricultural mulcher models:

VARIUN-FRUIT MODEL
Working widthTotal widthWeight Kg.HammersBeltsHP (indicative)R.P.M.Axle
12001600650184+250-705401″ 3/8 Z-6
13001800690184+260-80 5401″ 3/8 Z-6
14002000735184+270-905401″ 3/8 Z-6

Variun-fruit agricultural mulcher accesories:

Front chain set

Plus constant-velocity transmission

Plus group with free wheel

Plus double constant-velocity transmission

Plus hydraulic auger

Tabla

VARIUN-FRUIT
Working widthA mm.B mm.C mm.D mm.EF
12002290241023801640-56º90º
13002290251023801640-56º90º
14002290261023801640-56º90º
