VIÑA REVERSIBLE Mulcher
The VIÑA REVERSIBLE mulcher is specially designed to shred all kinds of vine shoots.
VIÑA REVERSIBLE Mulcher description:
The VIÑA REVERSIBLE mulcher is specially designed to shred all kinds of vine shoots. The mulcher is designed to operate in both forward and reverse drive, with a pick-up feeder to pass the vine shoots into the shredding chamber while preventing the entry of any stones. The machine is coupled to the tractor’s top link, allowing it to adapt perfectly to the terrain without the need to use the tractor’s hydraulic pump. Low power absorption. Wheels for height adjustment. Hinged hood offers easy access to the hammers. Very solid and sturdily built. Uniform shredding.
VIÑA REVERSIBLE Mulcher features:
- SWINGING HAMMER ROTOR, LOW POWER ABSORPTION
- ROTOR Ø 450 mm.
- ROTOR TUBE 160×15 mm.
- AXLE DIAMETER Ø 50 mm.
- STEEL IRON BEARING SHELLS
- ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
- V-BELT WITH KEVLAR FIBRE
- FLOATING WORK SYSTEM
- HAMMERS WITH LOW POWER ABSORPTION
- HAMMER SCREWS MADE OF 12.9 STEEL
- MECHANICAL OR HYDRAULIC FEEDER AS REQUIRED
- TOOTHED GRATED FOR FINE SHREDDING
- FIXED WHEELS FOR HEIGHT CONTROL
- TRANSMISSION INCLUDED
- REVERSIBLE GROUP INCLUDED
VIÑA REVERSIBLE Mulcher models:
|Working width||Overall width||Weight Kg.||Hammers||Belts||HP (indicative)||R.P.M.||Shaft|
|1250||1500||1080||12||3||70-100||1000||1″ 3/8 Z-6|
|1500||1750||1120||12||3||80-110||1000||1″ 3/8 Z-6|
|1800||2050||1160||16||4||90-120||1000||1″ 3/8 Z-6|
VIÑA REVERSIBLE Mulcher accesories:
2 finger side nylon kit (left-right)

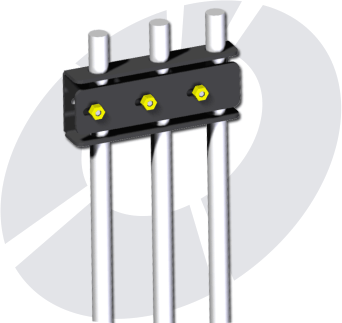

3 finger side nylon kit
