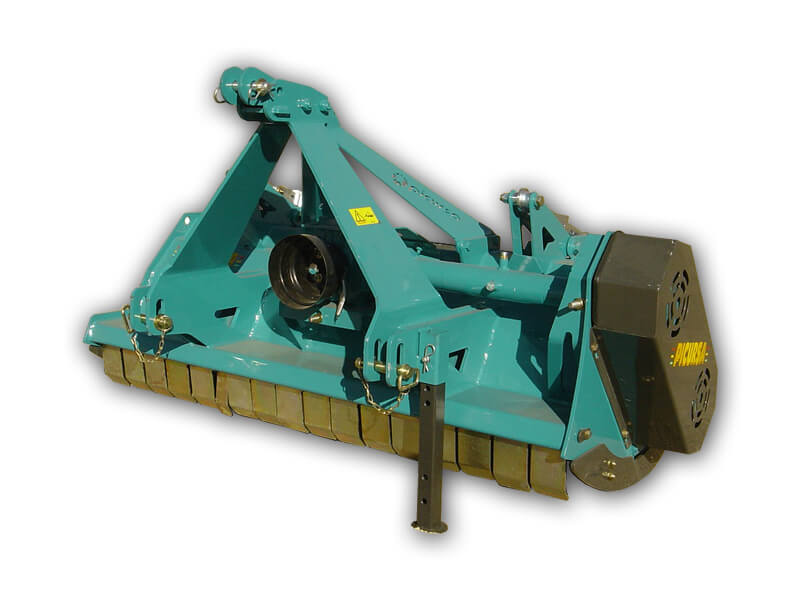

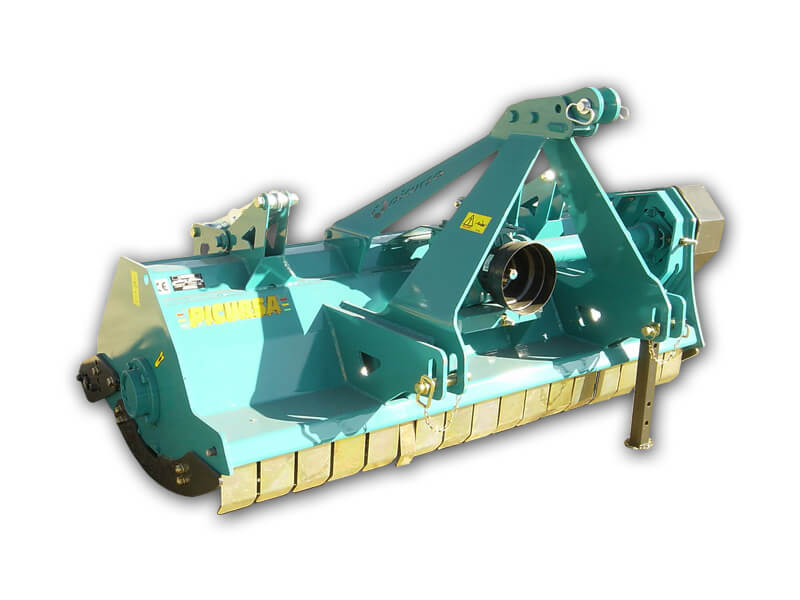

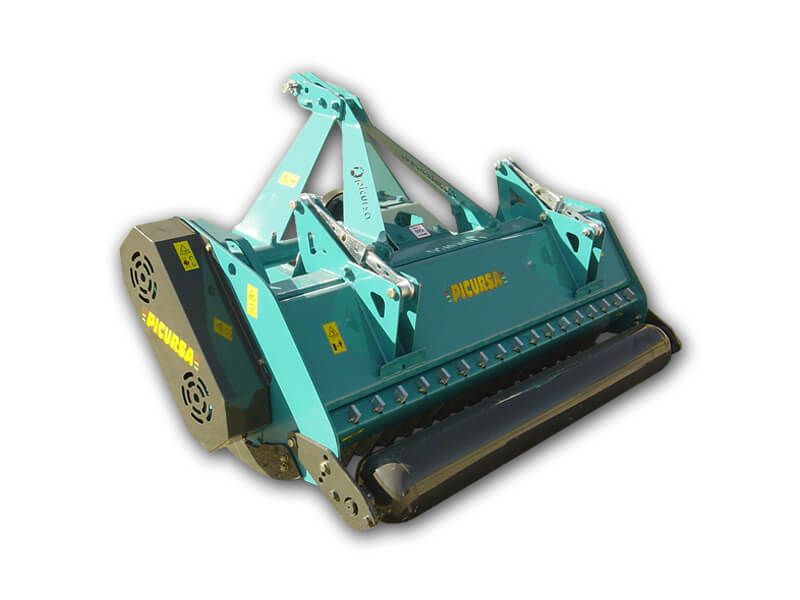

Viña Prepoda Mulcher
The VIÑA PREPODA mulcher is specially designed to shred all kinds of vine shoots up to 10 cm in diameter removed from the vines during cane pruning and which cannot be shredded using a mulcher with a pick-up feeder.
Features:
Robustness
Innovation
Flexibility
Durability
Viña Prepoda Mulcher description:
The VIÑA PREPODA mulcher is specially designed to shred all kinds of vine shoots up to 10 cm in diameter removed from the vines during cane pruning and which cannot be shredded using a mulcher with a pick-up feeder. Low power absorption. Roller or wheels for height adjustment. Hydraulic or manually controlled hinged hood. Very solid and sturdily built. Uniform shredding.
Viña Prepoda Mulcher features:
- SWINGING HAMMER ROTOR, LOW POWER ABSORPTION
- ROTOR Ø 500 mm.
- ROTOR TUBE 220X10 mm.
- AXLE DIAMETER Ø 60 mm.
- TWIN CHASSIS.
- STEEL IRON BEARINGS SHELLS
- ROTOR BEARINGS WITH DOUBLE ROW OF ROLLERS
- V-BELT WIT KEVLAR FIBRE
- FLOATING WORK SYSTEM
- HAMMERS WITH LOW POWER ABSORPTION
- HAMMER SCREWS MADE OF 12.9 STEEL
- TRANSMISSION INCLUDED
Viña Prepoda Mulcher models:
| Working width | Overall width | Weight Kg. | Hammers | Belts | HP (indicative) | R.P.M. | Shaft |
|---|---|---|---|---|---|---|---|
| 1600 | 1780 | 710 | 16 | 3 | 50-70 | 540-1000 | 1″ 3/8 Z-6 |
| 1800 | 1980 | 790 | 16 | 3 | 60-80 | 540-1000 | 1″ 3/8 Z-6 |
| 2000 | 2180 | 880 | 20 | 4 | 70-90 | 540-1000 | 1″ 3/8 Z-6 |
| 2300 | 2480 | 970 | 24 | 4 | 70-100 | 540-1000 | 1″ 3/8 Z-6 |
Viña Prepoda Mulcher accesories:

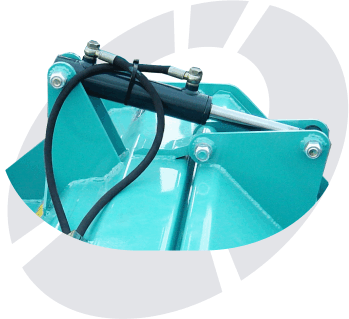

Hydraulic pistons for hinged hood
Rear roller scraper
Plus group with free wheel
Dust-guard set for wires
Retainer spikes
Plus free wheel transmission
Roller
Wheels
